SPECIAL VIDEO RECEIVER FOR 4400 - 6600 MHz BAND |
This special Wideband receiver will give you opportunity to monitor any frequency from 4400 MHz- 6600 MHz. Fully synthesized this World's smallest Microwave receiver is perfect for monitoring high frequency video band. It is fully portable, extremely sensitive and easy to use. You can simply press UP/DOWN button to change the frequency.
Dimensions: 2.8 " X 1.5 " X 0.75 ".
SPECIFICATIONS:
| BATTERY POWER: 12 V |
FREQUENCY: 4400 - 6600 MHz |
| CURRENT CONSUMPTIO: 250 mA |
SIZE: 2.8 " X 1.5 " X 0.75 " |
| PAL OR NTSC SYSTEM |
SMA ANTENNA CONNECTOR |
|
| |
|
|

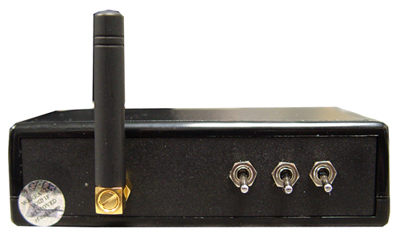

VRX-54S 8 CHANNELS RECEIVER- MONITOR FOR 5.8 GHz |
This small receiver is definitely the best 5.4 GHz Video receiver on the market. Fully synthesized this receiver has an SMA connector for different type of antennas for 5.4 GHz. This receiver has 8 channels in 5.4 GHz band.
Dimensions: 2.8 " X 1.5 " X 0.75 ".
SPECIFICATIONS:
| BATTERY POWER: 12 V |
FREQUENCY: 5400 MHz |
| CHANNELS: 8 |
SIZE: 2.8 " X 1.5 " X 0.75 " |
| CURRENT CONSUMPTION: 375 mA |
SMA ANTENNA CONNECTOR |
|
| |
|
|

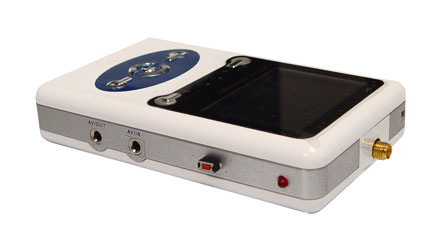

R-54 8 CHANNELS RECEIVER- MONITOR FOR 5.4 GHz |
This small receiver is definitely the best 5.4 GHz Video receiver on the market. Fully synthesized this receiver has an SMA connector for different type of antennas for 5.4 GHz. This receiver has 8 channels in 5.4 GHz band.
Dimensions: 4.8 " X 2.8 " X 0.9 ".
SPECIFICATIONS:
| BATTERY POWER: 7.4 V |
FREQUENCY: 5400 MHz |
| CHANNELS: 8 |
SIZE: 4.8 " X 2.8 " X 0.9 " |
| CURRENT CONSUMPTION: 350 mA |
SMA ANTENNA CONNECTOR |
| PAL OR NTSC SYSTEM |
|
|
| |
|
|
SPECIAL VIDEO RECEIVER FOR 5.8 GHz |
This small receiver is definitely the best 5.8 GHz Video receiver on the market. Fully synthesized this receiver has an SMA connector for different type of antennas for 5.8 GHz. This receiver is tunable and it covers all frequencies in 5.8 GHz band. This receiver can access any video TV transmitter in 5.8 GHz band.
SPECIFICATIONS:
| BATTERY POWER: 9 V-12 V |
PLL (PHASE LOOKED LOOP) CONTROLLED! |
| VIDEO OUT 1V PEP |
SIZE: 4.3" X 2.8 " X 1.0" |
| CURRENT CONSUMPTION: 375 mA! |
FREQUENCY DEMODULATION |
| SENSITIVITY -86 dBm |
NO AUDIO |
| TUNABLE IN 5.6 GHz- 5.9 GHz BAND |
HIGH STABILITY |
| SMA ANTENNA CONNECTOR |
POLARITY PROTECTED |
| VIDEO INVERSE FUNCTION |
MULTI TURN TUNABLE FUNCTION |
|
| |
|
|

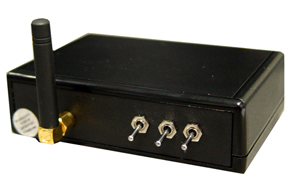

8 CHANNEL VIDEO RECEIVER FOR 5.8 GHz |
This small receiver is definitely the best 5.8 GHz Video receiver on the market. Fully synthesized this receiver has an SMA connector for different type of antennas for 5.8 GHz. This receiver has 8 channels in 5.8 GHz band.
Dimensions: 4.3 " X 2.8 " X 1.0 ".
SPECIFICATIONS:
| BATTERY POWER:12 V |
FREQUENCY: 5750 - 5850 MHz |
| DC VOLTAGE: 9 - 12V |
SIZE: 4.3" X 2.8 " X 1.0" |
| CURRENT CONSUMPTION: 250 mA/12V |
PAL AND NTSC SYSTEM |
| SMA ANTENNA CONNECTOR |
|
|
| |
|
|

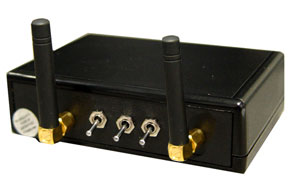

VRX-58DY 8 CHANNELS DIVERSITY RECEIVER- MONITOR FOR 5.8 GHz |
This small diversity receiver is definitely the best 5.8 GHz Video receiver on the market. Fully synthesized this receiver has an SMA connector for different type of antennas for 5.8 GHz. This receiver has 8 channels in 5.8 GHz band.
Dimensions: 4.3 " X 2.8 " X 1.0 ".
SPECIFICATIONS:
| BATTERY POWER: 12 V |
FREQUENCY: 5650 - 5900 MHz |
| DC VOLTAGE: 9 V-12 V |
SIZE: 4.3" X 2.8 " X 1.0" |
| CURRENT CONSUMPTION: 350 mA/ 12V |
CHANNELS: 1-8 |
| SMA ANTENNA CONNECTOR |
|
|
| |
|
|

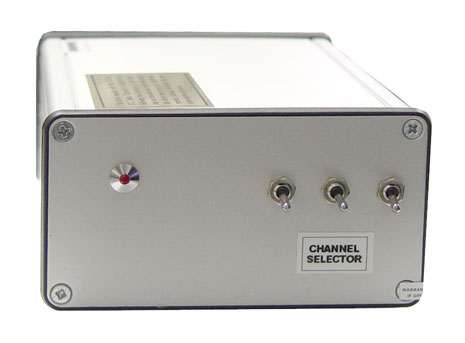

VRX-58c 8 CHANNELS RECEIVER- MONITOR FOR 5.8 GHz |
The new receiver for 5.8 GHz band is definitely the best 5.8 GHz Video receiver on the market. Fully synthesized this receiver has an SMA connector for different type of antennas for 5.8 GHz. This receiver has 8 channels in 5.8 GHz band and built-in low noise preamplifer 12 dB gain for 5.7-5.9 GHz.
Dimensions: 6.5 " X 4.0 " X 2.1 ". ".
SPECIFICATIONS:
| BATTERY POWER: 9 V-12 V |
GAIN: 12 dB |
| POWER SUPPLY: 10 - 14.4 V |
SIZE: 6.5 " X 4.0 " X 2.1 " |
| CURRENT CONSUMPTION: 380 mA |
FREQUENCY: 5.8 GHz |
| SMA ANTENNA CONNECTOR |
|
|
| |
|
|
VRX-58L 8 CHANNELS RECEIVER FOR 5.8 GHz |
This is the most sensitive and definitely the best 5.8 GHz Video receiver on the market. Fully synthesized this receiver has an SMA connector for different type of antennas for 5.8 GHz. This receiver works with any TV system and it has 8 selectable channels.
Dimensions: 4.7 " X 3.0 " X 1.0 ".
SPECIFICATIONS:
| BATTERY POWER: 9 V-12 V |
CHANNELS: 8 |
| FREQUENCY: 5.8 GHz |
SIZE: 4.7" X 3.0 " X 1.0" |
| CURRENT CONSUMPTION: 395 mA! |
SMA ANTENNA CONNECTOR |
|
| |
|
|
SPECIAL VIDEO RECEIVER FOR 5.8 GHz |
This is a very small 5.8 GHz wideband Video receiver for 5,65 MHz- 6,00 GHz. Fully synthesized this receiver has an SMA connector for different type of antennas for 5.8 GHz. This receiver works with any TV system and it is fully tunable.
SPECIFICATIONS:
| BATTERY POWER: 5 V |
SMA ANTENNA CONNECTOR |
| VIDEO OUT 1V PEP |
SIZE: 3.0 " X 3.0 " X 1.0" |
| CURRENT CONSUMPTION: 395 mA |
|
|
| |
|
|
EXCELLENT RECEIVER FOR 5.8 GHz ALL FREQUENCIES |
This is a special audio/video receiver for 5.8 GHz with continuos frequency range from 5,66 MHz - 6,00 GHz. Fully synthesized this receiver has an SMA connector for different type of antennas. The frequency step is 250 kHz with built-in fast scanning function.
SPECIFICATIONS:
| BATTERY POWER: 12 V |
SMA ANTENNA CONNECTOR |
| NTSC OR PAL TV SYSTEM |
SIZE: 5.6 " X 4.0 " X 2.0 " |
| CURRENT CONSUMPTION: 395 mA! |
|
|
| |
|
|
R-58 EXCELLENT RECEIVER FOR 5.8 GHz ALL FREQUENCIES |
This is a special audio/video receiver for 5.8 GHz continuos from 5.70 GHz - 6.00 GHz. Fully synthesized this receiver has an SMA connector for different type of antennas for 5.8 GHz. This small LCD receiver ahs a great reception and high quality picture. This receiver has built-in low noise preamplifer 12 dB gain for 5.7-5.9 GHz.
Dimensions: 4.8 " X 2.8 " X 0.9 ".
SPECIFICATIONS:
| BATTERY POWER: 7.4 V |
PLL (PHASE LOOKED LOOP) CONTROLLED! |
| DC VOLTAGE: 9 - 12V |
SIZE: 4.8 " X 2.8 " X 0.9 " |
| CURRENT CONSUMPTION: 350 mA / 7.4 V |
SMA ANTENNA CONNECTOR |
| FREQUENCY: 5400 MHz |
CHANNELS: FROM 1-8 |
|
| |
|
|
|
