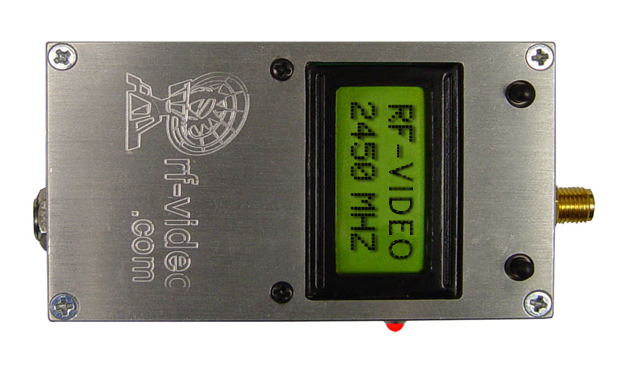

WTX-2400

Model:WTX-2400
Data sheet PDF pdf
Buy Online

SPECIAL AUDIO/VIDEO TRANSMITTER FOR 2.4 GHz WITH LCD DISPLAY

The new 2.4 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This special audio/video sender has been designed for Aeronautic or Space experiments. You can access any frequency in 2290-2500 MHz simply by pressing the buttons UP/DOWN. The frequency step is 250 kHz. This special video transmitter has 2 different video inputs and it works with any video receiver for 2.4 GHz available on the market.
Dimensions: 2.8 " X 1.5 " X 0.75 ".


SPECIFICATIONS:
DC VOLTAGE: 7.5 V - 12 V SIZE: 2.8 " X 1.5 " X 0.75 "
VIDEO INPUT: 1 V RANGE: 3 km FROM THE AIR
AUDIO INPUT: 300 m V FREQUENCY RANGE: 2290-2500 MHz
RF POWER: 100 mW PAL, NTSC SYSTEMS
CURRENT CONSUMPTION: 360 mA / 12 V FREQUENCY STEP: 250 kHz


DX-X1

Model:DX-X1

Buy Online

NEW TECHNOLOGY BREAK TROUGH-2.4 GHz WORLD'S SMALLEST VIDEO TRANSMITTER

This microscopic video transmitter for 2.3 GHz has amazing stability and broadcast picture quality! It is excellent for micro-air vehicle and aerospace applications, medical research, and more.
Dimensions: 3.0 mm X 2.0 mm X 0.8 mm. So small that a penny theoretically could fit 34 Transmitters within the space of a single side (34 pictured left).

DX-X1

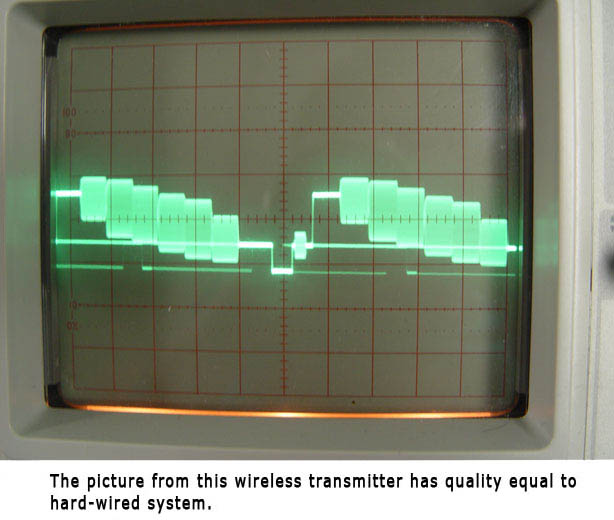

A Perfect Picture!


SPECIFICATIONS:
VIDEO INPUT: 1V SIZE: 3.0" X 2.0 " X 0.8"
FREQUENCY: 2.3 GHz


DX-2

Model:DX-1
Data sheet PDF pdf
Buy Online

2.4 GHz WORLD'S SMALLEST VIDEO TRANSMITTER

This microscopic video transmitter for 2.3 GHz has amazing stability and broadcast picture quality! This transmitter measures merely: 3.9 mm X 2.9 mm X 1.2 mm, making it is the smallest video transmitter on the market available for the public. It works from 2.5 V and takes only 6 mA. Excellent for micro-air vehicle and aerospace applications, medical research, and more.
Dimensions: 3.9 mm X 2.9 mm X 1.2 mm. So small that a penny theoretically could fit 25 within the space of a single side (14 pictured left).

DX-X1

A Perfect Picture!


SPECIFICATIONS:
BATTERY POWER: 3 V-12 V SINGLE CHANNEL CH 1 - CH 8
VIDEO INPUT: 1V SIZE: 3.9 " X 2.9 " X1.2"
NTSC, PAL or SECAM SYSTEMS FREQUENCY: 2,300- 2,500 MHz
IMPEDANCE: 75 ohms RANGE UP TO: 1000 ft


DX-2

Model:DX-2
Data sheet PDF pdf
Buy Online

2.4 GHz WORLD'S SMALLEST VIDEO TRANSMITTER

This small video transmitter for 2.4 GHz has great stability and broadcast picture quality! This transmitter measures only: 0.3"x 0.2"x 0.25". It is the smallest video transmitter on the market available for the public. It works from 3 V and takes only 8 mA.

DX-X1 A Perfect Picture!


SPECIFICATIONS:

BATTERY POWER: 3 V-12 V SINGLE CHANNEL CH 1 - CH 8
VIDEO INPUT: 1V SIZE: 0.3" X 0.3" X 0.25"
NTSC, PAL SYSTEMS BUILT-IN ANTENNA
RF POWER: <1 mW RANGE UP TO: 1000 ft
CURRENT CONSUMPTION: 8 m A / 5 V FREQUENCY: 2,300- 2,500 MHz


SDX-1

Model:SDX-1
Data sheet PDF pdf
Buy Online

2.4 GHz WORLD'S SMALLEST VIDEO TRANSMITTER

This is definitely the World's smallest video transmitter for 2,4 GHz. This transmitter was built using the latest technology. The size of this little unit is just amazing: 0.6?X 0.5?X 0.15? exactly! Complete unit is built on high quality multi layer PC board. The picture has broadcast quality. RF power output is 94 dBuV/m @3m, and final FCC approval coming soon!The maximum range is app. 1000 ft line-of-sight. Required power supply is 7.5 V-12 V maximum. The current consumption is extremely low- only 15 mA which makes this unit excellent for cover operations. Battery 9 V will last 24 hours. The unit is wrapped in heat shrink tube, and it is weatherproof. The video signal level is adjustable and unit accepts any kind of video cameras CMOS or CCD without modifications. It comes in different frequencies, and most common receiver is a VRX-24!

Most common frequencies:

CH1 2410 MHz
CH2 2433 MHz
CH3 2452 MHZ
CH4 2472 MHz

SDX-1

Spectrum analyzer graph for SDX-1

SPECIFICATIONS:
POWER SUPPLY: 7.5V-12V FREQUENCY RANGE: 2400-2500 MHz
VIDEO INPUT: 1 V RCA FREQUENCY MODULATION
RANGE UP TO: 300 ft HIGH QUALITY PICTURE
LOW CURRENT CONSUMPTION: 15 mA/ 9 V PAL, NTSC SYSTEMS
BUILT-IN ANTENNA PLL CONTROLED
SIZE: 0.6" X 0.55 " X 0.15" 4 CHANNELS  AVAILABLE


SDX-22SDX-22B

Model:SDX-22, SDX-22B
Data sheet PDF pdf
Encryption model
Buy Online

2.4 GHz VIDEO TRANSMITTER 80 mW POWER

This is the MOST POWERFUL WORLD'S SMALLEST VIDEO TRANSMITTER with an incredible range and quality! This unit has been used in many Law enforcement operations. It is excellent and stable for any application. This transmitter measures only 0.6" X 0.5" X 0.15"! Incredible Full RF Power of 80 mW radiated from the antenna on the board will give you the maximum range of 3 miles from the AIR. SDX 22 is the World's smallest and strongest video transmitter for 2.4 GHz. The picture is broadcast quality. Maximum transmitting bandwidth is 12 MHz! This unit works from 12V / 68mA. This video transmitter accepts any type of video cameras - CCD or CMOS as well. The special electronic circuit will give you an extended transmitting range and color quality. Video level (brightness) is adjustable with potentiometer on the board.

Most common frequencies:

CH1 2410 MHz
CH2 2433 MHz
CH3 2452 MHZ
CH4 2472 MHz

SDX-22

Smallest encoder/decoder board with 2 million combinations is available for high security applications. Please E-mail for more info. Size: 0.5" X 0.6"


SPECIFICATIONS:
POWER SUPPLY: 9V-12V RANGE: 3 miles FROM THE AIR
VIDEO INPUT: 1 V RCA FREQUENCY RANGE: 2400-2500 MHz
RF POWER: 75 mW FREQUENCY MODULATION
CURRENT CONSUMPTION: 68 mA/ 12 V HIGH QUALITY PICTURE
BUILT-IN ANTENNA PAL, NTSC SYSTEMS
SIZE: 0.6" X 0.55 " X 0.15" 4 CHANNELS  AVAILABLE


SDX-22

Model:SDX-22LP
Data sheet PDF pdf
Buy Online

2.4 GHz VIDEO TRANSMITTER - SPECIAL 4 CHANNELS AUDIO/VIDEO TRANSMITTER

This is the special 2.4 GHz video transmitter-a high power unit. This transmitter was built using the latest technology. The size of this transmitter is just amazing: 0,5 X 0.5" X 0.12"exactly. Complete unit is built on high quality multi layer PC board. The picture is broadcast quality. This video transmitter has audio carrier and channel selector on board. You can transmit to 4 channels in 2.4 Ghz- 2.5 Ghz band.

Model SDX-26 A on request is available in 4 channels from 2.3 GHz- 2.4 GHz. 4 Channels switch is located on board.
Model SDX-26 B works from 2.4 GHz - 2.5 GHz.

Most common frequencies:

CH1 2410 MHz
CH2 2433 MHz
CH3 2452 MHZ
CH4 2472 MHz

Note: This unit requires a special receiver with built-in deemphasis filter. If you are using a different kind of receiver you might not get good picture quality. Please purchase our receiver VRX series with the transmitter.


SPECIFICATIONS:
VIDEO INPUT: 1 V RCA FREQUENCY RANGE: 2300-2500 MHz
RF POWER: 25 mW/ 5V PAL, NTSC or SECAM SYSTEMS
CURRENT CONSUMPTION: 60 mA/ 9 V 4 CHANNELS  AVAILABLE
SIZE: 0.5" X 0.5 " X 0.12"


SDX-26

Model:SDX-26
Data sheet PDF pdf
Buy Online

2.4 GHz VIDEO TRANSMITTER - SPECIAL 4 CHANNELS AUDIO/VIDEO TRANSMITTER

This is the special 2.4 GHz video transmitter-a high power unit. This transmitter was built using the latest technology. The size of this transmitter is just amazing: 0,5 X 0.5" X 0,12"exactly. Complete unit is built on high quality multi layer PC board. The picture is broadcast quality. This video transmitter has audio carrier and channel selector on board. You can transmit to 4 channels in 2.4 Ghz- 2.5 Ghz band.
Dimensions: 0.5 " X 0.5 " X0.12 ".

Model SDX-26 A on request is available in 4 channels from 2.3 GHz- 2.4 GHz. 4 Channels switch is located on board.
Model SDX-26 B works from 2.4 GHz - 2.5 GHz.

Note: This unit requires a special receiver with built-in deemphasis filter. If you are using a different kind of receiver you might not get good picture quality. Please purchase our receiver VRX series with the transmitter.


SPECIFICATIONS:
VIDEO SIGNAL: 1 V, 75 ohm FREQUENCYE: 2300-2500 MHz
RF POWER: 25 mW/ 5V PAL, NTSC or SECAM SYSTEMS
CURRENT CONSUMPTION: 60 mA/ 5.5 V 4 CHANNELS  AVAILABLE
SIZE: 0.5" X 0.5 " X 0.12"


MX-4000

Model:MX-4000
Data sheet PDF pdf
Buy Online

WORLD'S SMALLEST 250 mW AUDIO/VIDEO TRANSMITTER 2.4 GHz

This is a MEDIUM power version - World's smallest 250 mW video transmitter for 2.4 GHz. This small video transmitter for 2.4 GHz. It has been tested from the airplane model over 3 km transmitting distance to the receiver VRX-24 L with a high gain antenna and amplifier for receiver AMP-18.This transmitter works with 5.5 V battery and weights ONLY 5 grams.This transmitter comes in 8 single channels in 2.4 GHz band.
Dimensions: 0.9 " X 0.6 " X 0.4 ".

MX-4000setupRegulator required with this transmitter


SPECIFICATIONS:
OPERATING FREQUENCY: 2,300-2,500 MHz SIZE: 0.9 " X 0.6 " X 0.4"
DC VOLTAGE: 5 V RANGE:  8 km FROM THE AIR
AUDIO INPUT: 300 m V PAL, NTSC SYSTEMS
SINGLE CHANNELS: FROM 1-4 (5-8) RF POWER OUT: 250 mW (1W)


MX-5000

Model:MX-5000
Data sheet PDF pdf
Buy Online

WORLD'S SMALLEST 450 mW AUDIO/VIDEO TRANSMITTER 2.4 GHz

This is a high power version of 450 mW tested RF power, World's smallest and strongest video transmitter for 2.4 GHz. It will transmit over 8 km to the receiver VRX-24 L with a high gain antenna and amplifier for receiver AMP-18. This transmitter works with 5.0 V battery and weights ONLY 10 grams. A special made silver-plated box eliminates unwanted harmonic frequencies. This transmitter comes in 4 channels in 2.4 GHz band. Model A covers 4 channels from 2300 MHz - 2400 MHz and Model B works from 2400 MHz - 2500 MHz. When placing an order please choose the Model A or Model B.

MX-5000

MX-5000Regulator required with this transmitter


SPECIFICATIONS:
FREQUENCY RANGE: 2300-2500 MHz SIZE: 0.9 " X 0.6 " X 0.4"
DC VOLTAGE: 5 V RANGE:  8km FROM THE AIR
AUDIO INPUT: 300 m V PAL, NTSC SYSTEMS
RF POWER: 450 mW SINGLE CHANNELS: FROM 1-4 (5-8)


MX-6000

Model:MX-6000
Data sheet PDF pdf
Buy Online

AMAZING! WORLD'S SMALLEST 2.4 GHz AUDIO/VIDEO TRANSMITTER 1 W

The new World's smallest audio/video transmitter for 2.4 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This special audio/video transmitter has been designed for MAV or UAV applications. It is fully synthesized unit with 4 (8) channels. The power output is 1000 mW/ 6.2 V. This unit is powered by 5 VDC. This transmitter measures 0.8 " X 0.7 " X 0.3"

MX-5000MX-6000

MX-5000Regulator required with this transmitter


SPECIFICATIONS:
POWER SUPPLY: 4.5 V-7.0 V max! SIZE: 0.8 " X 0.7 " X 0.3"
DC VOLTAGE: 5 V RANGE: 8km FROM THE AIR
AUDIO INPUT: 300 m V FREQUENCY RANGE: 2300-2500 MHz
RF POWER: 1000 mW (1W) SINGLE CHANNELS FROM 1-4 (5-8)
PAL, NTSC SYSTEMS


MX-3000

Model:MX-3000
Data sheet PDF pdf
Buy Online

8 CHANNELS AUDIO/VIDEO TRANSMITTER MX 3000 FOR ISM BAND 2.4 GHz

The new 2.4 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This special audio/video sender has been designed for Aeronautic or Space experiments. This transmitter has 8 selectable channels with indication.
Dimensions: 1.5 " X 1.0 " X 0.3 ".


SPECIFICATIONS:
POWER SUPPLY: 4.5 V-7.0 V max! SIZE: 1.5 " X 1.0 " X 0.3 "
DC VOLTAGE: 12 V SMA ANTENNA CONNECTOR
AUDIO INPUT: 200 m V FREQUENCY RANGE: 2,400-2,500 MHz
RF POWER: 50 mW / 9V PAL, NTSC SYSTEMS
CURRENT CONSUMPTION: 160 mA / 12 V ON BOARD SELECTABLE


MX-3000B

Model:MX-3000B
Data sheet PDF pdf
encryption model
Buy Online

8 CHANNELS AUDIO/VIDEO TRANSMITTER MX 3000B FOR ISM BAND 2.4 GHz

The new 2.4 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This special audio/video sender has been designed for Aeronautic or Space experiments. This transmitter has 8 selectable channels with indication.
Dimensions: 1.7 " X 1.0 " X 0.3 "


SPECIFICATIONS:
FREQUENCY RANGE 2300-2500 MHz SIZE: 1.7 " X 1.0 " X 0.3 "
DC VOLTAGE: 12 V RANGE: 3 miles FROM THE AIR
SMA ANTENNA CONNECTOR ON BOARD SELECTABLE
RF POWER: 50 mW/ 9 V PAL, NTSC SYSTEMS
CURRENT CONSUMPTION: 160 mA / 12 V


LUV-80

Model:LUV-80
Data sheet PDF pdf
Buy Online

80 mW SMALL VIDEO TRANSMITTER 2.4 GHz 4 CHANNELS

The newest 80 mW audio/video transmitter for 2.4 GHz is an excellent unit for 2.4 GHz. This is a high efficiency video transmitter. It requires power supply 5 V-12 V with a current consumption 80 mA! This transmitter is the best tested unit for Airplane models. It has 4 channels in 2.4 GHz range.
Dimensions: 1.7 " X 1.0 " X 0.3 ".


SPECIFICATIONS:
DC VOLTAGE: 7.5 V – 14.4 V SIZE: 1.7 " X 1.0 " X 0.3 "
RF POWER: 80 mW RANGE: 3 km FROM THE AIR
CURRENT CONSUMPTION: 80 mA / 9 V FREQUENCY RANGE: 2300-2500 MHz
SMA ANTENNA CONNECTOR PAL, NTSC SYSTEMS


LUV-200M

Model:LUV-200M
Data sheet PDF pdf
Buy Online

200 mW SMALLEST VIDEO TRANSMITTER 2.4 GHz SINGLE CHANNEL

The newest 200 mW video transmitter for 2.4 GHz is excellent and the best unit for 2.4 GHz on the market! This is a high efficiency video transmitter. It requires power supply 7.5 V-12 V with a current consumption 140 mA. This transmitter is the best tested unit for Airplane models.
Dimensions: 1.5 " X 1.2 " X 0.4 ".

LUV-200M-Unit on the scale-weight 6.5 grams


SPECIFICATIONS:
POWER MAX. : 250 mW SIZE: 1.5 " X 1.2 " X 0.4 ".
CURRENT CONSUMPTION: 140 mA / 12V RANGE UP TO : 5 km FROM THE AIR
SINGLE CHANNEL AVAILABLE FREQUENCY RANGE: 2300-2500 MHz
PAL, NTSC or SECAM SYSTEMS


LUV-250

Model:LUV-250
Data sheet PDF pdf
:encryption model
Buy Online

250 mW SMALL VIDEO TRANSMITTER 2.4 GHz 4 CHANNELS

The newest 250 mW audio/video transmitter for 2.4 GHz is the best unit for 2.4 GHz on the market! This is a high efficiency video transmitter. It requires power supply 7.5 V-12 V with a current consumption of 160 mA. This transmitter is the best tested unit for Airplane models. LUV-250 video transmitter has 4 channels.
Dimensions: 1.7 " X 1.0 " X 0.5 ".


SPECIFICATIONS:
DC VOLTAGE: 7.5 - 9 V SIZE: 1.7 " X 1.0 " X 0.5 "
VIDEO LEVEL: 1 V RANGE: 5 km FROM THE AIR
AUDIO LEVEL: 300 m V FREQUENCY RANGE 2300-2500 MHz
RF POWER: 250 mW PAL, NTSC SYSTEMS
CURRENT CONSUMPTION: 160 mA / 9 V SELECT FROM: CH1-4 (4-8)


LUV-450

Model:LUV-450
Data sheet PDF pdf
encryption model
Buy Online

450 mW SMALL VIDEO TRANSMITTER 2.4 GHz 4 CHANNELS

The new 2.4 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This special audio/video sender has been designed for Aeronautic or Space experiments. This transmitter has 8 selectable channels with indication.
Dimensions: 1.7 " X 1.0 " X 0.5 ".


SPECIFICATIONS:
SELECT FROM: CH1-4 (4-8) SIZE: 1.7 " X 1.0 " X 0.5 "
VIDEO INPUT: 1 V RANGE: 5 km FROM THE AIR
AUDIO INPUT: 300 m V FREQUENCY RANGE: 2300-2500 MHz
RF POWER: 450 mW PAL, NTSC SYSTEMS
CURRENT CONSUMPTION: 410 mA / 9 V


LUV-1000X/6

Model:LUV-1000X/12

Model:LUV-1000X/6

Data sheet PDF pdf
Buy Online

WORLD SMALLEST VIDEO TRANSMITTER 2.4 GHz 1000 mW 8 CHANNELS

The newest 1000 mW audio/video transmitter for 2.4 GHz is the best smallest transmitter on the market with amazing RF power of 1 W. This is the one of the World's smallest 1 W video transmitter. It requires power supply 6 V with a current consumption 560 mA. This transmitter is the best tested unit for Airplane models. LUV-1000X/6 & LUV-1000X/12 both have 8 easy to change channels.

Model LUV-1000X/6 works on 6 V DC (5 V - 6.5 V)
Model LUV-1000X/12 works on 12 V DC (7.5 V - 14 V)
Dimensions: 1.7 " X 1.0 " X 0.8 ".


SPECIFICATIONS:
DC VOLTAGE: 6 V SIZE: 1.7" X 1.1 " X 0.8"
VIDEO INPUT: 1 V RANGE: 8 km FROM THE AIR
AUDIO INPUT: 300 m V FREQUENCY RANGE 2300-2500 MHz
RF POWER OUT: 1000 mW (1W) PAL, NTSC SYSTEMS
CURRENT CONSUMPTION: 560 mA / 5 V 8 CHANNELS  AVAILABLE


LUV-1000MX

Model:LUV-1000MX
Data sheet PDF pdf
Buy Online

SMALL VIDEO TRANSMITTER 2.4 GHz 1000 mW 8 CHANNELS

The newest 1000 mW audio/video transmitter for 2.4 GHz is the best smallest transmitter on the market with amazing RF power of 1 W. This transmitter is excellent for covert applications. It requires power supply 7.5-12 V with a current consumption of only 360 mA thanks to the special switching circuit. This transmitter is the best tested unit for Airplane models. LUV-1000MX both has 8 easy to change channels.
Dimensions: 2.8 " X 1.5 " X 0.75 ".


SPECIFICATIONS:
DC VOLTAGE: 7.5 V - 12 V SIZE: 2.8" X 1.5 " X 0.75"
VIDEO INPUT: 1 V RANGE: 8 km FROM THE AIR
AUDIO INPUT: 300 m V FREQUENCY RANGE: 2300-2500 MHz
RF POWER OUT: 1000 mW (1W) PAL, NTSC SYSTEMS
CURRENT CONSUMPTION: 360 mA / 5 V 8 CHANNELS  AVAILABLE


LX-3000/1

Model:LX-3000/1
Data sheet PDF pdf
encryption model
Buy Online

1W AUDIO/VIDEO TRANSMITTER LX-3000/1 FOR 2.4 GHz 8 CHANNELS

The new 2.4 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has 8 easy to change channels and 1 W RF power. It works from 9 V- 16 V.
Dimensions: 6.0 " X 4.0 " X 1.2 ".


SPECIFICATIONS:
CHANNEL: AGILE CH FROM 1-8 SIZE: 6" X 4 " X 1.2"
VIDEO INPUT: 1 V RANGE: OVER 6 km LOS
AUDIO INPUT: 300 m V FREQUENCY RANGE: 2300-2500 MHz
RF POWER: 450 mW PAL, NTSC SYSTEMS
CURRENT CONSUMPTION: 1.2 A / 12 V


LUV-1000X/6

Model:LX-3000/2

Model:LX-3000/M-2

Data sheet PDF pdf
encryption model
Buy Online

WORLD SMALLEST VIDEO TRANSMITTER 2.4 GHz 1000 mW 8 CHANNELS

The new 2.4 GHz Audio/Video transmitter with 8 channels is a special design for Military applications capable to work in extremely low or high temperature range. This special audio/video sender has been designed for Aeronautic or Space experiments. It has 2 W RF power and it works from 9 V- 16 V.
Dimensions: 6.0 " X 3.0 " X 1.0 ".




SPECIFICATIONS:
DC VOLTAGE: 9 - 16 V SIZE: 6" X 3 " X 1"
VIDEO INPUT: 1 V RANGE: OVER 6 km LOS
AUDIO INPUT: 300 m V FREQUENCY RANGE: 2300-2500 MHz
RF POWER: 2 W PAL, NTSC SYSTEMS
CURRENT CONSUMPTION: 1.28 A / 12 V CHANNEL: AGILE CH FROM 1-8


LUV-1000X/6

Model:LX-3000/2fm

Data sheet PDF pdf
encryption model
Buy Online

2W AUDIO/VIDEO TRANSMITTER LX-3000/2FM FOR 2.4 GHz 8 CHANNELS

The new 2.4 GHz Audio/Video transmitter with 8 channels is a special design for Military applications capable to work in extremely low or high temperature range. This special audio/video sender has been designed for Aeronautic or Space experiments. It has 2 W RF power and it works from 9 V- 16 V. This unit has a broadcast quality picture and works great for special applications with external encoder/decoders.
Dimensions: 6.0 " X 3.0 " X 1.0 ".



SPECIFICATIONS:
DC VOLTAGE: 9 - 16 V SIZE: 6.0" X 3.0 " X 1.0"
VIDEO INPUT: 1 V SMA CONNECTOR
AUDIO INPUT: 300 m V FREQUENCY RANGE: 2300-2500 MHz
RF POWER: 2 W PAL, NTSC SYSTEMS
CURRENT CONSUMPTION: 1.28 A / 12.6 V CHANNEL: AGILE CH FROM 1-8


LX-3000/5

Model:LX-3000/5
Data sheet PDF pdf
:encryption model
Buy Online

5W AUDIO/VIDEO TRANSMITTER LX-3000/5 FOR 2.4 GHz 8 CHANNELS

The new 2.4 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This special audio/video transmitter has 8 switchable channels.
Dimensions: 6.0 " X 3.0 " X 1.0 ".


SPECIFICATIONS:
DC VOLTAGE: 9 V - 16 V SIZE: 6.0 " X 3.0 " X 1.0 ".
VIDEO INPUT: 1 V RANGE: 16 km FROM THE AIR
AUDIO INPUT: 300 m V FREQUENCY RANGE: 2300-2500 MHz
RF POWER: 5 W PAL, NTSC SYSTEMS
CURRENT CONSUMPTION: 1.8 A / 12 V CHANNEL: AGILE CH FROM 1-8


LX-2500/2

Model:LX-2500/2
Data sheet PDF pdf
Buy Online

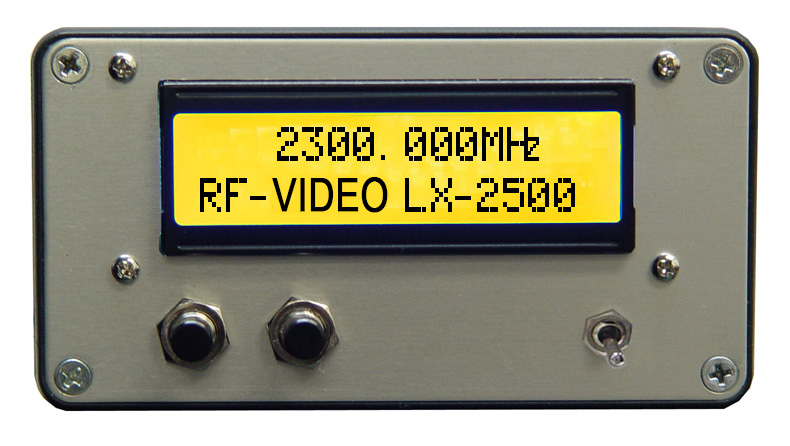

2W AUDIO/VIDEO TRANSMITTER WITH DIGITAL DISPLAY LX-2500/2 FOR 2.4 GHz

The new 2.4 GHz Audio/Video transmitter with a digital display is a special design for Military applications capable to work in extremely low or high temperature range. It is easy to access any frequency you want from wide range 2300-2500+ MHz. This special audio/video sender has been designed for Aeronautic or Space experiments. It has 2W RF power and it works from 9 V- 16 V.
Dimensions: 6.5 " X 4.0 " X 2.0 ".

LX-2500/2Police robot using LX-3000M video transmitter and antenna AD-24S


SPECIFICATIONS:
DC VOLTAGE: 9 V - 16 V SIZE: 6.5 " X 4.0 " X 2.0 "
VIDEO INPUT: 1 V RANGE:OVER 16 km LOS
AUDIO INPUT: 300 m V FREQUENCY RANGE: 2300-2500 MHz
RF POWER: 2 W PAL, NTSC SYSTEMS
CURRENT CONSUMPTION: 1.2 A / 12 V CHANNEL: STEP 250 kHz, ANY FREQUENCY


LX-2500/5

Model:LX-2500/5
Data sheet PDF pdf
Buy Online

5W AUDIO/VIDEO TRANSMITTER WITH DIGITAL DISPLAY LX-2500/5 FOR 2.5 GHz

The new 2.5 GHz Audio/Video transmitter with a digital display is a special design for Military applications capable to work in extremely low or high temperature range. It is easy to access any frequency you want from wide range 2200-2500+ MHz. This special audio/video sender has been designed for Aeronautic or Space experiments. It has 5W RF power and it works from 9 V- 16 V.
Dimensions: 6.5 " X 7.0 " X 2.0 ".

LX-2500/2Police robot using LX-3000M video transmitter and antenna AD-24S

SPECIFICATIONS:
DC VOLTAGE: 9 V - 16 V SIZE: 6.5 " X 7.0 " X 2.0 "
VIDEO INPUT: 1 V RANGE: OVER 16 km LOS
AUDIO INPUT: 300 m V FREQUENCY RANGE: 2200-2500 MHz
RF POWER: 5 W PAL, NTSC SYSTEMS
CURRENT CONSUMPTION: 1.8 A / 12 V CHANNEL: SETP 250 kHz, ANY FREQUENCY


LX-3000/8

Model:LX-3000/8
Data sheet PDF pdf
Buy Online

8 W AUDIO/VIDEO TRANSMITTER LX-3000/8 FOR 2.4 GHz 8 CHANNELS

The new 2.4 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This special audio/video sender has been designed for Aeronautic or Space experiments. LX-3000/8 has 8 channels in 2.3-2.5 GHz range.
Dimensions: 6.0 " X 4.0 " X 2.0 ".

LX-2500/2Police robot using LX-3000M video transmitter and antenna AD-24S


SPECIFICATIONS:
DC VOLTAGE: 9 V - 16 V SIZE: 6.0 " X 4.0 " X 2.0 ".
VIDEO INPUT: 1 V RANGE: OVER 25 km LOS
AUDIO INPUT: 300 m V FREQUENCY RANGE: 2300-2500 MHz
RF POWER: 8 W PAL, NTSC SYSTEMS
CURRENT CONSUMPTION: 4 A / 12 V CHANNEL: AGILE CH FROM 1-8


LX-3000/10

Model:LX-3000/10
Data sheet PDF pdf
Buy Online

10 W AUDIO/VIDEO TRANSMITTER LX-3000/10 FOR 2.4 GHz 8 CHANNELS

The new 2.4 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This special audio/video sender has been designed for Aeronautic or Space experiments. LX-3000/10 has 8 channels in 2.3-2.5 GHz range.
Dimensions: 6.0 " X 4.0 " X 2.0 ".

40 miles Long Range System For Security or UAV, available for Government / Agencies / Universities

LX-2500/2Police robot using LX-3000M video transmitter and antenna AD-24S


SPECIFICATIONS:
DC VOLTAGE: 9 V - 16 V SIZE: 6.0 " X 3.0 " X 1.0 ".
VIDEO INPUT: 1 V RANGE: OVER 40 km LOS
AUDIO INPUT: 300 m V FREQUENCY RANGE: 2300-2500 MHz
RF POWER: 10 W PAL, NTSC SYSTEMS
CURRENT CONSUMPTION: 4 A / 12 V CHANNEL: AGILE CH FROM 1-8


LX-3000/40

Model:LX-3000/40
Data sheet PDF pdf
Buy Online

40 W AUDIO/VIDEO TRANSMITTER LX-3000/40 FOR 2.4 GHz 8 CHANNELS

The new 2.4 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range.This video transmitter gives over 40 W RF power. This special audio/video sender has been designed for Aeronautic or Space experiments. LX-3000/40 has 8 channels in 2.3-2.5 GHz range.This audio/video transmitters comes with a cooling fan.
Dimensions: 10.0 " X 4.0 " X 3.0 ".

LX-2500/2Police robot using LX-3000M video transmitter and antenna AD-24S


SPECIFICATIONS:
DC VOLTAGE: 9 V - 16 V SIZE: 10.0 " X 4.0 " X 3.0 "
VIDEO INPUT: 1 V RANGE: 8km FROM THE AIR
AUDIO INPUT: 300 m V FREQUENCY RANGE: 2300-2500 MHz
RF POWER: 5 W PAL, NTSC SYSTEMS
CURRENT CONSUMPTION: 1.8 A / 12 V CHANNEL: AGILE CH FROM 1-8


LX-100p

Model:LX-100p
Data sheet PDF pdf
Buy Online

VIDEO TRANSMITTER 2.4 GHz 100 W

The new 100 W PROGRAMMABLE 2.4 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This video transmitter gives over 100 W RF power. This special audio/video transmitter is fully programmable from 2,290 MHz- 2,500 MHz. It has been designed for Aeronautic, Space experiments or Special Military applications. This audio/video transmitter must be mounted on a larger metal surface to cool it down. The special LCD programmer is included with the unit. This transmitter works from 12 VDC/ 20A.
Dimensions: 9.0 " X 2.5. " X 3.9 ".

LX-2500/2Police robot using LX-3000M video transmitter and antenna AD-24S


SPECIFICATIONS:
DC VOLTAGE: 12 V - 12.6 V SIZE: 9.0 " X 2.5. " X 3.9 "
VIDEO INPUT: 1 V RANGE: OVER 60 km LOS
AUDIO INPUT: 300 m V FREQUENCY RANGE: 2290-2500 MHz
RF POWER: 100 W PAL, NTSC SYSTEMS
CURRENT CONSUMPTION: 18-20 A / 12.6 V CHANNEL: AGILE CH FROM 2300-2500 MHz
