GX-68

Model:GX-68
Data sheet PDF pdf
pal model
Buy Online

HIGH POWER STEADICAM VIDEO SENDER FOR ALL TV CHANNELS
The newest video sender GX-68 has been designed for steadicam users. It is switchable to any UHF TV channel and cable channels as well. This transmitter has excellent performances with a buil-in video filter and an amplifier. RF section is amazing- you can cover all channels without any retuning. The range of this video sender is over 600 ft line-of sight (low power model) or over 1 km with a high power unit. Transmitter measures only 3.2"x 2.0"x 0.9". GX-68 has built-in an audio portion. Recommended receiver is M-806. A special matching antennas are included (2 different antennas to cover all UHF TV band).

SPECIFICATIONS:
POWER SUPPLY 12 V - 14 V/  120 mA NTSC PAL or SECAM TV SYSTEMS
CRYSTAL CONTROLLED TV CHANNELS: CH 14 - CH 69 UHF
HIGH QUALITY PICTURE B&W or COLOR LONG RANGE - UP TO 3000 ft!
AM MODULATION (any TV set to desired channel can get the picture) SPECIAL ANTENNA INCLUDED
1 YEAR WARRANTY
RCA VIDEO INPUT 1 V  VIDEO IMPEDANCE 75 ohms

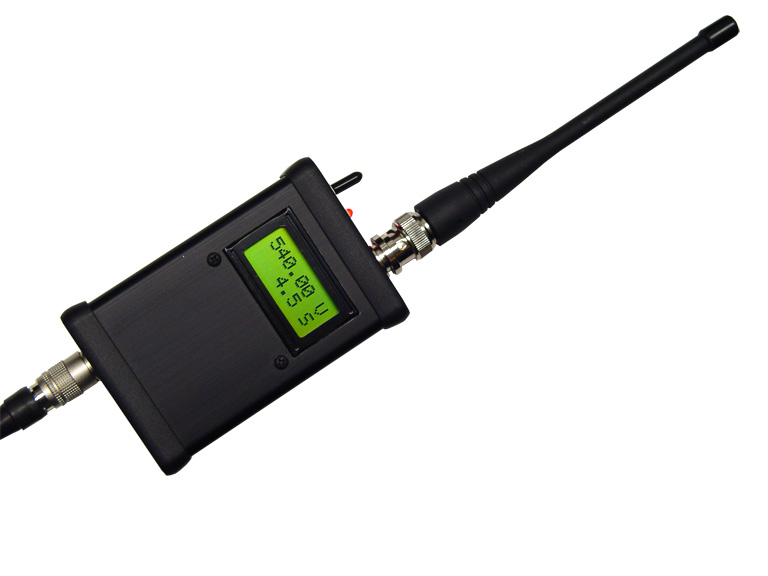

GX-1000M

Model:GX-1000M
Data sheet PDF pdf
Buy Online

GX-1000 PROFESSIONAL VIDEO SENDER FOR ALL TV CHANNELS WITH DIGITAL DISPLAY

The newest video sender GX-1000 arrived. It has been designed for professionals in Film industry and TV production. This video transmitter works for ANY TV system and any country: PAL, NTSC, SECAM...This unit has an LCD display and you can set any frequency from, as low as 40 MHz, all the way to 928 MHz. The frequency step is adjustable. This amazing video transmitter has excellent performances with a built-in video filters. RF section of this transmitter is amazing- you can cover all channels without any retuning. Digital display indicates the UHF frequency. The bottom line of the display shows the carrier frequency that can be set to any TV system in any country. The range of this video sender is over 600 ft line-of sight (medium power model) or over 1 km with a high power unit. Transmitter measures only 3.2"x 2.0"x 0.9". GX-1000 has built-in an audio portion. Recommended receiver is M-806. A special matching antenna that covers entire UHF TV band is included. This unit out performs all video senders on the market. Recommended DC voltage is 12 V. This Video sender works from 12 V - 24 V DC, or 12- 50 VDC for a high power model, thanks to special switching power supply built- in the unit. The channel selection is simple by push buttons.


SPECIFICATIONS:

POWER SUPPLY 12 V - 24 V/  120 mA NTSC PAL or SECAM TV SYSTEMS
CRYSTAL CONTROLLED ALL TV CHANNELS
HIGH QUALITY PICTURE B&W or COLOR LONG RANGE - UP TO 3000 ft!
AM MODULATION (any TV set to desired channel can get the picture) SPECIAL ANTENNA INCLUDED
SIZE: 3.2"x 2.0"x 0.9"
RCA VIDEO INPUT 1 V  VIDEO IMPEDANCE 75 ohms

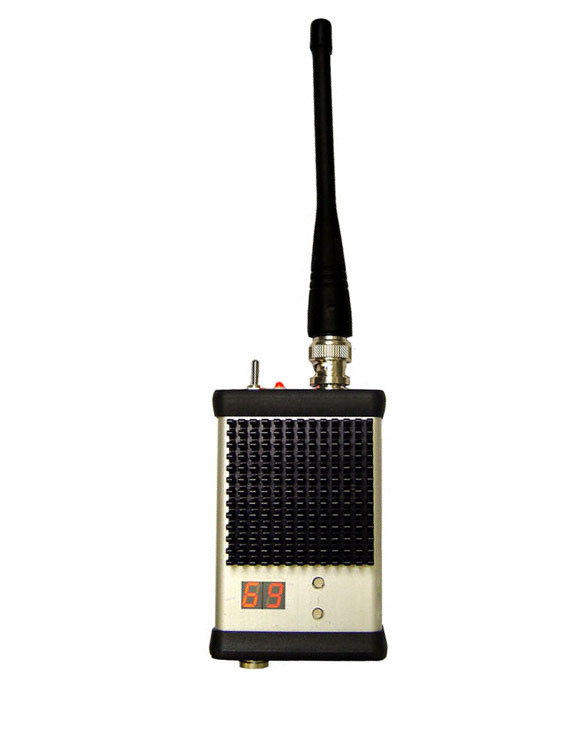

GX-68D

Model:GX-68D
Data sheet PDF pdf
Buy Online

PROFESSIONAL VIDEO SENDER FOR ALL TV CHANNELS WITH DIGITAL DISPLAY

The newest video sender GX-68D has been designed for professionals in Film industry and TV production. This unit has over 50 UHF channels. TV channels from CH 21-69 and 10 cable channels are available. This transmitter has excellent performances with a built-in video filters. RF section of this transmitter is amazing- you can cover all channels without any retuning. Digital display indicates the UHF channel. The range of this video sender is over 600 ft line-of sight (medium power model) or over 1 km with a high power unit. Transmitter measures only 3.2"x 2.0"x 0.9". GX-68D has built-in an audio portion. Recommended receiver is M-806. A special matching antenna that covers entire UHF TV band is included. This unit out performs all video senders on the market. Recommended DC voltage is 12 V. This Video sender works from 12 V - 50 V DC, thanks to special switching power supply built- in the unit. The channel selection is simple by push buttons.

SPECIFICATIONS:
BUILT-IN POWER SUPPLY CH 21 - CH 69
DC VOLTAGE: 12V SIZE:3.2"x 2.0"x 0.9"
FOR FILM INDUSTRY AND TV PRODUCTION RANGE: OVER 1000m

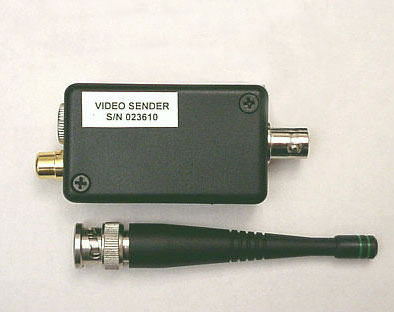

GX-68NS

Model:GX-68NS
Data sheet PDF pdf
Buy Online

PROFESSIONAL VIDEO SENDER FOR ALL TV CHANNELS - NO AUDIO
The newest video sender GX-68NS has been designed for professionals in Film industry and TV production. This unit has over 50 usable UHF channels. TV channels from CH 21-69 and some cable channels are available. This transmitter has excellent performances with a built-in video filters. RF section of this transmitter is amazing- you can cover all channels without any retuning. The range of this video sender is over 600 ft line-of sight (medium power model) or over 1 km with a high power unit. GX-68NS has no audio. Recommended receiver is M-806. A special matching antennas are included (2 different antennas to cover all UHF TV band).
Dimensions: 3.2 " X 2.0 " X0.9 ".

SPECIFICATIONS:
FREQUENCY: 470 - 806MHz CH 21 - CH 69
DC VOLTAGE: 12 - 32 V SIZE: 3.2 " X 2.0 " X0.9 ".
NTSC, OR PAL SYSTEMS MATCHING ANTENNAS INCLUDED
BNC CONNECTOR RANGE UP TO: 1000 m


IGX-68

Model:IGX-68
Data sheet PDF pdf
pal model
Buy Online

MEDIUM POWER VIDEO SENDER IGX- 68 new model!

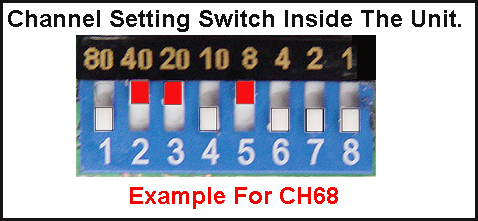

The new model UHF Video transmitter was designed for Steadicam users or TV and Film production. This unit out performs all kinds of video senders on the market. Range is up to 600 ft line-of-sight under ideal conditions. This transmitter has excellent color picture quality. This video transmitter has all channels in TV UHF band from CH 14 - CH 69 UHF. It is easy to change the channel with dip-switches.
Dimensions: 2.75 " X 1.5 " X 0.75 ".
Audio channel is available on request, $100.00 extra.

Model IGX-68 /HR is with Hirosi DC power connector.

IGX-68

SPECIFICATIONS:
BATTERY POWER: 6 V-12 V CH 14 - CH 69 UHF
VIDEO INPUT: 1V SIZE:2.75 " X 1.5 " X 0.75 "
NTSC SYSTEMS (PAL UPON REQUEST) SMA ANTENNA CONNECTOR


LX-5600C

Transmitter & Receiver pair

Model:LX-5600C

Model: :RMX-5600C

Data sheet PDF pdf
pal model
Buy Online

SPECIAL SINGLE CHANNEL VIDEO TRANSMITTER & RECEIVER PAIR 5644.75 MHz - DEMO

New Microwave Transmitter and Receiver are fully synthesized single channel items (5,644.750 MHz). The RF power output power is 200 mW. They are great for low range communication up to 2500 ft LOS or experiments.

Dimensions: 2.8 " X 1.5 " X 0.75 ".

SPECIFICATIONS FOR TRANSMITTER:
BATTERY POWER: 12 V-14.4 V SINGLE CHANNEL
CURRENT CONSUMPTION: 350 mA / 12 V SIZE: 2.8 " X 1.5 " X 0.75 "
NTSC AND PAL RF POWER OUTPUT: 200mW / 50ohms

SPECIFICATIONS FOR RECEIVER:
DC VOLTAGE: 9-12 V SINGLE CHANNEL
CURRENT CONSUMPTION: 350 mA / 12 V SIZE: 2.8 " X 1.5 " X 0.75 "
VIDEO LEVEL: 1 V RF POWER LEVEL: 94 dBuV/m@3m





SPX-68V

Model:SPX-68V
Data sheet PDF pdf
pal model
Buy Online

HIGH POWER VIDEO SENDER SPX- 68V

The newest Medium power UHF Video transmitter designed for Steadicam users or TV and Film production. This unit out performs all kinds of video senders on the market. Range is up to 600 ft line-of-sight under ideal conditions. This transmitter has excellent color picture quality. This video transmitter has all UHF channels from CH14-CH69. This video transmitter is available in PAL.
Dimensions: 3.9 " X 1.9 " X 0.8 ".

IGX-68

SPECIFICATIONS:
BATTERY POWER: 3 V-12 V CH 14 - CH 69 UHF
RANGE UP TO: 600 ft line of sight SIZE: 3.9 " X 1.9 " X 0.8 "
PAL SYSTEMS


SPX-30A

Model:SPX-30A

for CH 30 UHF AIR
Model: SPX-50/XXU

Data sheet PDF pdf
pal model
Buy Online

HIGH POWER VIDEO SENDER SPX- SERIES

This is a High power UHF Video transmitter designed for Steadicam users or TV and Film production. This unit out performs all kinds of video senders on the market. Range is up to 1500 ft line-of-sight under ideal conditions. This transmitter has excellent color picture quality! Size: 2.2" X 0.8" X 1.2". Please choose desired channel.
Dimensions: 2.2 " X 1.2 " X 0.8 ".

Model: SPX-50/59C cable CH 59, frequency 433.25 MHz
Model: SPX-50/15U CH 15 UHF, frequency 477.25 MHz
Model: SPX-50/17U CH 17 UHF, frequency 489.25 MHz
Model: SPX-50/18U CH 18 UHF, frequency 495.25 MHz
Model: SPX-50/20U CH 20 UHF, frequency 507.25 MHz
Model: SPX-50/22U CH 22 UHF, frequency 519.25 MHz
Model: SPX-50/24U CH 24 UHF, frequency 531.25 MHz
Model: SPX-50/26U CH 26 UHF, frequency 543.25 MHz
Model: SPX-50/28U CH 28 UHF, frequency 555.25 MHz
Model: SPX-50/30U CH 30 UHF, frequency 567.25 MHz
Model: SPX-50/32U CH 32 UHF, frequency 579.25 MHz
Model: SPX-50/34U CH 34 UHF, frequency 591.25 MHz


SPECIFICATIONS:
BATTERY POWER: 12 V-14 V CH 65 - CH 69
RANGE UP TO: 1500 ft LINE OF SIGHT SIZE: 2.2 " X 1.2 " X 0.8 "
FREQUENCY: 777.25 - 801.25 MHz PAL, OR NTSC SYSTEM


SPX-59C

Model:spx-59c
Data sheet PDF pdf
pal model
Buy Online

MEDIUM POWER VIDEO SENDERS MX-50 SERIES

RF-links.com. introduces a small Video senders for TV production and Film. Model MX-50 has 50 mW RF power and it is excellent low cost solution for Steadicam operators. Matching antenna is included. This unit is available in many different TV UHF channels.
Dimensions: 2.2"x 1.5"x 0.8".

Model: MX-50/59C cable CH 59, frequency 433.25 MHz
Model: MX-50/15U CH 15 UHF, frequency 477.25 MHz
Model: MX-50/17U CH 17 UHF, frequency 489.25 MHz
Model: MX-50/18U CH 18 UHF, frequency 495.25 MHz
Model: MX-50/20U CH 20 UHF, frequency 507.25 MHz
Model: MX-50/22U CH 22 UHF, frequency 519.25 MHz
Model: MX-50/24U CH 24 UHF, frequency 531.25 MHz
Model: MX-50/26U CH 26 UHF, frequency 543.25 MHz
Model: MX-50/28U CH 28 UHF, frequency 555.25 MHz
Model: MX-50/30U CH 30 UHF, frequency 567.25 MHz
Model: MX-50/32U CH 32 UHF, frequency 579.25 MHz
Model: MX-50/34U CH 34 UHF, frequency 591.25 MHz

SPECIFICATIONS:
BATTERY POWER: 12 V-14 V CH 65 - CH 69
RANGE: UP TO 1500 ft LINE-OF-SIGHT SIZE: 2.2"x 1.5"x 0.8"
NTSC, PAL SYSTEMS


MX-50/65T

Model:MX-50/65T
Data sheet PDF pdf
pal model
Buy Online

MEDIUM POWER VIDEO SENDER MX-50/65T WITH ADJUSTABLE UHF CHANNELS 65-69

This transmitter is designed for steadicam users or professionals. It is adjustable from CH 65-69 AIR in UHF TV band. This little transmitter is just amazing. It will give you a broadcast quality picture up to 100 ft under ideal conditions! Recommended receiver is M-806. A special matching antenna for 790 MHz is included.
Dimensions :2.2 " X 1.5 " X 0.8 ".

SPECIFICATIONS:
CURRENT CONSUMPTION: 28 mA/ 9 V CH 65 - CH 69
POWER SUPPLY: 9 - 12V SIZE: 2.2 " X 1.5 " X 0.8 "
NTSC, PAL or SECAM SYSTEMS BNC ANTENNA CONNECTOR


CH-68A

Model:ch-68a

Model:ch-69a

Data sheet PDF pdf
pal model
Buy Online

LOW POWER VIDEO SENDER CH-68A WITH ADJUSTABLE CHANNELS

This transmitter is designed for experiments or video-surveillance. It uses a very stable oscillator for UHF TV channels from CH 65-69 AIR. This little transmitter is just amazing. It will give you a broadcast quality picture up to 100 ft under ideal conditions! This transmitter is adjustable from CH 65- CH 69 UHF AIR.
Dimensions: 0.8 " X 0.6 " X 0.2 ".

SPECIFICATIONS:
CURRENT CONSUMPTION: 27 mA/ 9 V CHANNEL: CH 65 - CH 69 UHF
BATTERY OPERATED: 9 - 12V SIZE: 0.8 " X 0.6 " X 0.2 "
RANGE: FROM 100 - 600ft BUILT IN ANTENNA


CH-30A

Model:CH-30A
Data sheet PDF pdf
pal model
Buy Online

SMALLEST VIDEO TRANSMITTER CH 30 UHF

This transmitter is designed for experiments or video-surveillance. It uses a fundamental oscillator frequency for broadcast TV CH 30 UHF. This little transmitter is just amazing. It will give you a broadcast quality picture up to 600 ft under ideal conditions! The transmitter is fully crystal controlled!
Dimensions: 0.8 " X 0.6 " X 0.2 ".

SPECIFICATIONS:
CURRENT CONSUMPTION: 36 mA/ 9 V CH 65 - CH 69
POWER SUPPLY: 9 - 12V SIZE: 0.8 " X 0.6 " X 0.2 "
NTSC, PAL or SECAM SYSTEMS BUILT IN ANTENNA
