EXCELLENT SMALL 2.4 GHz ANTENNA |
|
This little antenna is excellent for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector. Impedance 50 ohms, gain 3 dBi.
Dimensions : 3.5 " X 0.4 " X 0.2 ".
SPECIFICATIONS:
| CASE DESIGN: WATER RESISTANCE |
IMPEDANCE: 50 ohms |
| HOUSING MATERIAL: RUBBER-PLASTIC |
SIZE: 3.5 " X 0.4 " X 0.2 " |
| GAIN: 3 dBi |
|
|
| |
|
|

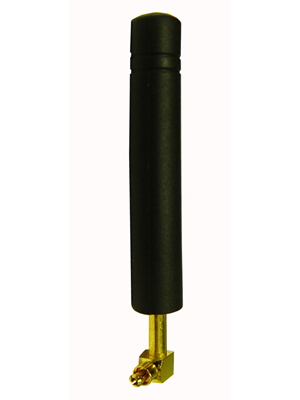

2.4GHz MINI RUBBER DUCKY WIRELESS ANTENNA -MC CONNECTOR |
This smallest antenna is perfect for any transmitter or receiver in 2.4 GHz band. The antenna is using a right angle MC type connector. Impedance 50 ohms, gain 1 dBi.
Dimensions: 2.16" X 0.29".
SPECIFICATIONS:
| FREQUENCY RANGE: 2400-2500 MHz |
IMPEDANCE: 50 ohms |
| GAIN: 1 dBi |
SIZE: 2.16" X 0.29". |
|
| |
|
|
2.4GHz MINI RUBBER DUCKY WIRELESS ANTENNA - MMCX CONNECTOR |
This smallest antenna is perfect for any transmitter or receiver in 2.4 GHz band. The antenna is using a right angle MMCX type connector. Impedance 50 ohms, gain 1 dBi.
Dimensions: 2.0 " X 0.12".
SPECIFICATIONS:
| FREQUENCY RANGE: 2400-2500 MHz |
IMPEDANCE: 50 ohms |
| GAIN: 1 dBi |
SIZE: 2.0 " X 0.12" |
| MMCX CONNECTOR |
|
|
| |
|
|

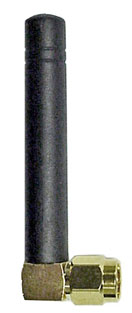

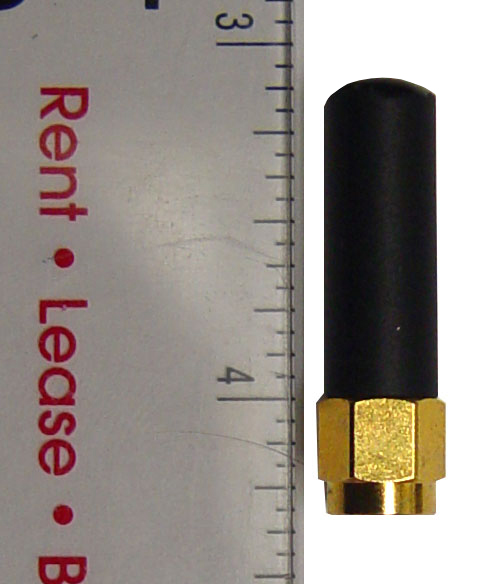

EXCELLENT SMALL 2.4 GHz ANTENNA |
|
This smallest antenna is perfect for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector. Impedance 50 ohms, gain 0 dBi.
Dimensions: 1.25 " X 0.25 ".
SPECIFICATIONS:
| FREQUENCY RANGE: |
GAIN: 0 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 1.25 " X 0.25 " |
| SMA CONNECTOR |
|
|
| |
|
|

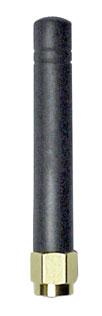

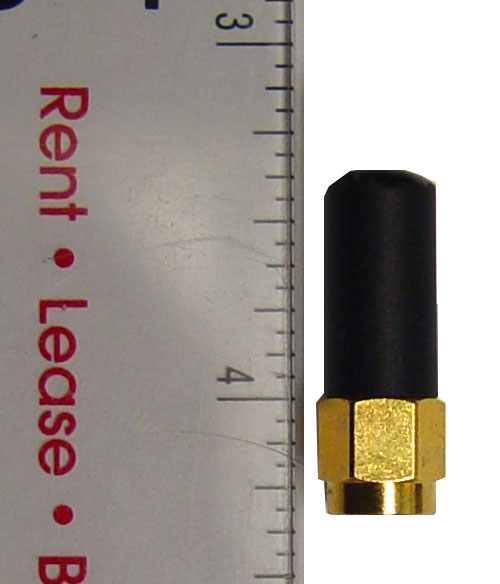

EXCELLENT SMALL 2.4 GHz ANTENNA |
This smallest antenna is perfect for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector. Impedance 50 ohms, gain 0 dBi.
Dimensions: 1.0 " X 0.25 "
SPECIFICATIONS:
| FREQUENCY RANGE: 2400-2500 MHz |
SMA CONNECTOR |
| GAIN: 0 dBi |
SIZE: 1.0 " X 0.25 " |
| IMPEDANCE: 50 ohms |
|
|
| |
|
|
EXCELLENT SMALL 2.4 GHz ANTENNA |
|
This smallest antenna is perfect for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector. Impedance 50 ohms, gain 0 dBi.
Dimensions: 2.0 " X 0.25 ".
SPECIFICATIONS:
| FREQUENCY RANGE: 2400-2500 MHz |
GAIN: 0 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 2.0 " X 0.25 " |
| N OR SMA CONNECTOR |
|
|
| |
|
|
EXCELLENT SMALL 2.4 GHz ANTENNA |
|
This smallest antenna is perfect for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector. Impedance 50 ohms, gain 0 dBi.
Dimensions: 2.0 " X 0.25 ".
SPECIFICATIONS:
| FREQUENCY RANGE: 2400-2500 MHz |
GAIN: 0 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 2.0 " X 0.25 " |
| SMA CONNECTOR |
MAX. POWER INPUT: 2 W |
|
| |
|
|

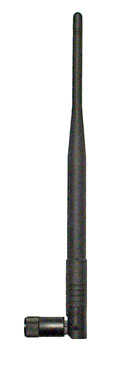

EXCELLENT SMALL 2.4 GHz ANTENNA |
|
This little antenna is excellent for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector. Impedance 50 ohms, gain 3.5 dBi.
Dimensions: 7.5 " X 1.2 " X 0.2 ".
SPECIFICATIONS:
| FREQUENCY RANGE: 2400-2500 MHz |
GAIN: 3.5 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 7.5 " X 1.2 " X 0.2 " |
| SMA MALE CONNECTOR |
|
|
| |
|
|

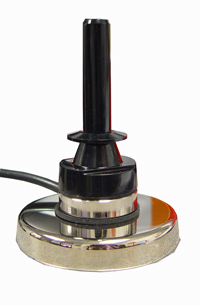

EXCELLENT SMALL OMNI DIRECTIONAL 2.4 GHz ANTENNA |
|
This very compact mobile-mount omni antenna provides broad coverage and 5 dBi gain. It is ideally suited for PCS applications where omni-directional coverage and low visibility are desired.
SPECIFICATIONS:
| FREQUENCY RANGE: 2400 MHz |
GAIN: 5 dBi |
| IMPEDANCE: 50 ohms |
LENGTH: 5" INCLUDING BASE |
| SMA MALE CONNECTOR |
MOUNTING: MAGNET |
|
| |
|
|
EXCELLENT SMALL 2.4 GHz ANTENNA |
|
This very compact mobile-mount omni antenna provides broad coverage and 3 dBi gain. It is ideally suited for PCS applications where omni-directional coverage and low visibility are desired. It comes with 6 ft special coax cable with an SMA male connector
SPECIFICATIONS:
| FREQUENCY RANGE: 2400 MHz |
GAIN: 3 dBi |
| IMPEDANCE: 50 ohms |
LENGTH: 2.7" INCLUDING BASE |
| SMA MALE CONNECTOR |
|
|
| |
|
|

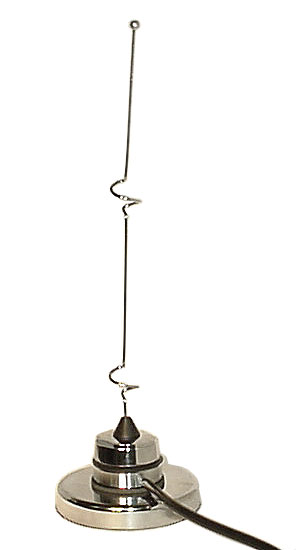

OMNI DIRECTIONAL MOBILE 2.4 GHz ANTENNA |
|
This omni directional magnet mount antenna is excellent for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector.
SPECIFICATIONS:
| FREQUENCY RANGE: 2400-2500 MHz |
GAIN: 5.8 dBi |
| IMPEDANCE: 50 ohms |
LENGTH: 10" INCLUDING BASE |
| SMA CONNECTOR |
MOUNTING: MAGNET |
|
| |
|
|
OMNI DIRECTIONAL 2.4 GHz ANTENNA FOR SPECIAL APPLICATIONS |
|
AD-24S antenna is highly recommended for Police robots transmitters. It is omni directional and works for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector.
Dimensions: 6.75" X 0.8 ".
SPECIFICATIONS:
| FREQUENCY RANGE: 2400-2500 MHz |
GAIN: 5 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 6.75" X 0.8 " |
| N OR SMA CONNECTOR |
CASE DESIGN: WATER RESISTANCE |
|
| |
|
|
OMNI DIRECTIONAL 2.4 GHz ANTENNA |
|
AD-24SH antenna is highly recommended for Police robots transmitters. It is omni directional and works for any transmitter or receiver in 2.4 GHz band. The antenna is using an N type connector.
Dimensions are:8.5" X 1.0".
SPECIFICATIONS:
| FREQUENCY RANGE: 2400-2500 MHz |
GAIN: 4 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 8.5" X 1.0" |
| N OR SMA CONNECTOR |
CASE DESIGN: WATER RESISTANCE |
|
| |
|
|
OMNI DIRECTIONAL 2.4 GHz ANTENNA |
|
AD-24SHS antenna is highly recommended for Police robots transmitters. It is omni directional and works for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector.
Dimensions are:35cm X 2.54cm.
SPECIFICATIONS:
| FREQUENCY RANGE: 2400-2483 MHz |
GAIN: 6.5 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 35cm X 2.54cm |
| SMA CONNECTOR |
|
|
| |
|
|
OMNI DIRECTIONAL 2.4 GHz ANTENNA |
|
A collinear Omni-Directional antenna that utilizes a center fed Collinear Dipole array that offers superior performance over the traditional bottom fed collinear designs.
Dimensions: 40.5 " X 1.69"
SPECIFICATIONS:
| FREQUENCY RANGE: 2200-2300 MHz |
GAIN: 15 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 40.5 " X 1.69" |
| INTEGRAL N-FEMALE CONNECTOR |
|
|
| |
|
|

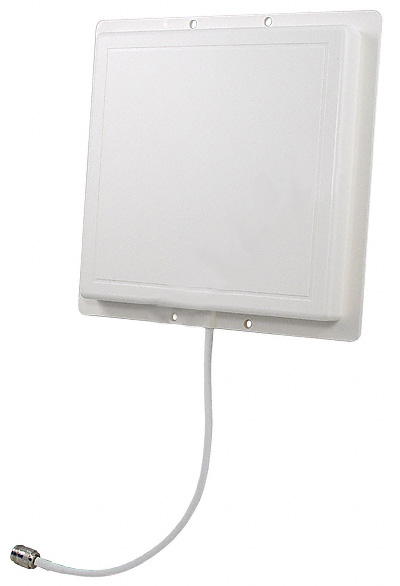

HIGH GAIN 2.4 GHz PANEL ANTENNA |
|
Panel antenna PN-24 S has 14 dB gain in 2400 MHz - 2500 MHz range. Antenna has an SMA connector and comes with a 50 ohm cable 1 ft long.
Dimensions: 8.5 " X 8.5 " X 1.0".
SPECIFICATIONS:
| FREQUENCY RANGE: 2400-2500 MHz |
GAIN: 14 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 8.5 " X 8.5 " X 1.0" |
| SMA CONNECTOR |
|
|
| |
|
|

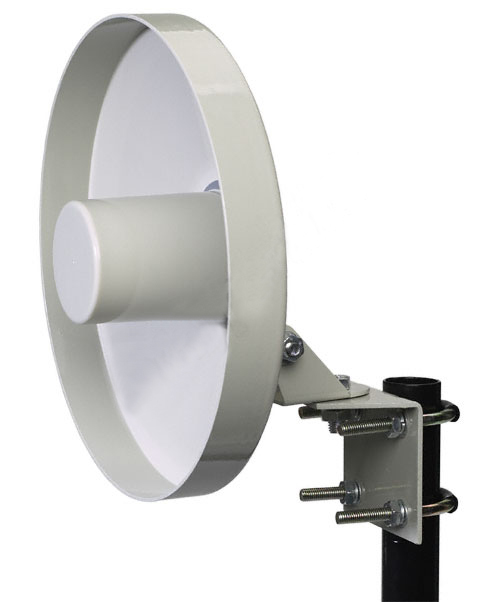

HIGH GAIN 2.4 GHz BACKFIRE ANTENNA |
|
High gain Backfire antenna F-250 S has 15 dB gain in 2400 MHz - 2500 MHz range. This antenna has diameter 10". Antenna has an integral N female connector.
Dimensions: 10.0 " X 5.0 "
SPECIFICATIONS:
| FREQUENCY RANGE: 2400-2500 MHz |
GAIN:15 dBi |
| IMPEDANCE: 50 ohms |
DIAMETER: 10" |
| INTEGRAL N FEMALE CONNECTOR |
|
|
| |
|
|
HIGH GAIN 2.4 GHz YAGI RADOME ANTENNA |
|
High gain Yagi antenna LOG1/GR has 15 dB gain in 2400 MHz - 2500 MHz range. Antenna has an N connector.
Dimensions: 18.0 " X 3.0 "
SPECIFICATIONS:
| FREQUENCY RANGE: 2400-2500 MHz |
GAIN: 14 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 18.0 " X 3.0 " |
| N CONNECTOR |
|
|
| |
|
|

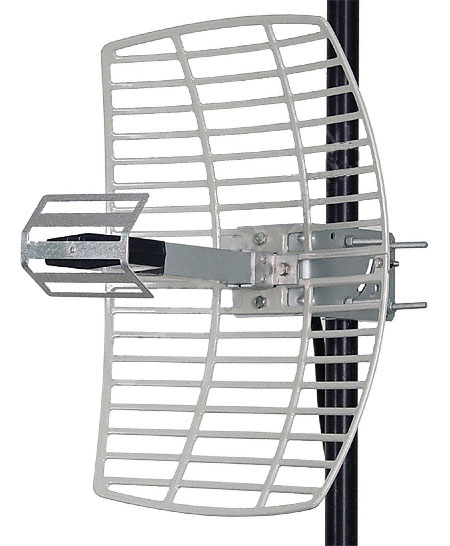

2.4 GHz ANTENNA 15 dB GAIN |
|
High gain antenna PG-24L has 15 dB gain in 2400 MHz - 2500 MHz range. This antenna comes with our AMP-18/24M low-noise amplifier for the longest range. Complete system has 33 dB gain in 2.4 Ghz range. Antenna has N connector and comes with a military grade 50 ohm cable 1 ft long.
Dimensions: 12.0 " X 16.0 ".
Amplifier- 18/24M is included with this unit.
SPECIFICATIONS:
| FREQUENCY RANGE: 2400-2500 MHz |
GAIN: 15 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 12.0" X 16.0" |
| N CONNECTOR |
|
|
| |
|
|

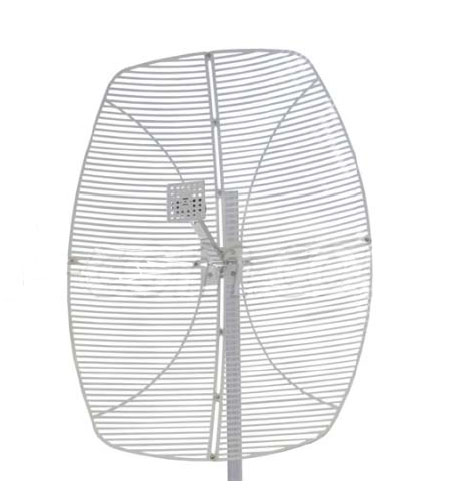

2.4 GHz ANTENNA 27 dB GAIN |
|
High gain antenna PX-24L has 27 dB gain in 2.300 MHz - 2.500 MHz range. This antenna comes with our AMP-18/24M low-noise amplifier for the longest range. Complete system has 45 dB gain in 2.4 Ghz range. Antenna has N connector and comes with a military grade 50 ohm cable 1 ft long.
Dimensions: 47.2 " X 35.4 "
Amplifier- 18/24M is included with this unit
SPECIFICATIONS:
| FREQUENCY RANGE: 2300-2500 MHz |
GAIN: 27 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 47.2 " X 35.4 " |
| N CONNECTOR |
|
|
| |
|
|
|
