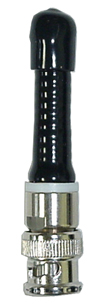

SPECIAL ANTENNA 0 dB GAIN 430 MHz |
This antenna is a perfect match for our video transmitters / receivers SPX/M series. It will cover frequency range from 400- 480 MHz
Dimensions : 2.5 " X 0.5 "
SPECIFICATIONS:
| FREQUENCY: 400 MHz - 480 MHz |
GAIN: 0 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 2.5 " X 0.5 " |
| BNC MALE CONNECTOR |
|
|
| |
|
|

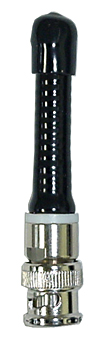

SPECIAL ANTENNA 0 dB GAIN 500 MHz |
This antenna is a perfect match for our video transmitters / receivers SPX/M series. It will cover frequency range from 500- 650 MHz.
Dimensions: 2.2 " X 0.5 ".
SPECIFICATIONS:
| FREQUENCY: 500 MHz - 650 MHz |
GAIN: 0 dBi |
| VIDEO INPUT: 1V |
SIZE: 02.2 " X 0.5 " |
| BNC MALE CONNECTOR |
|
|
| |
|
|

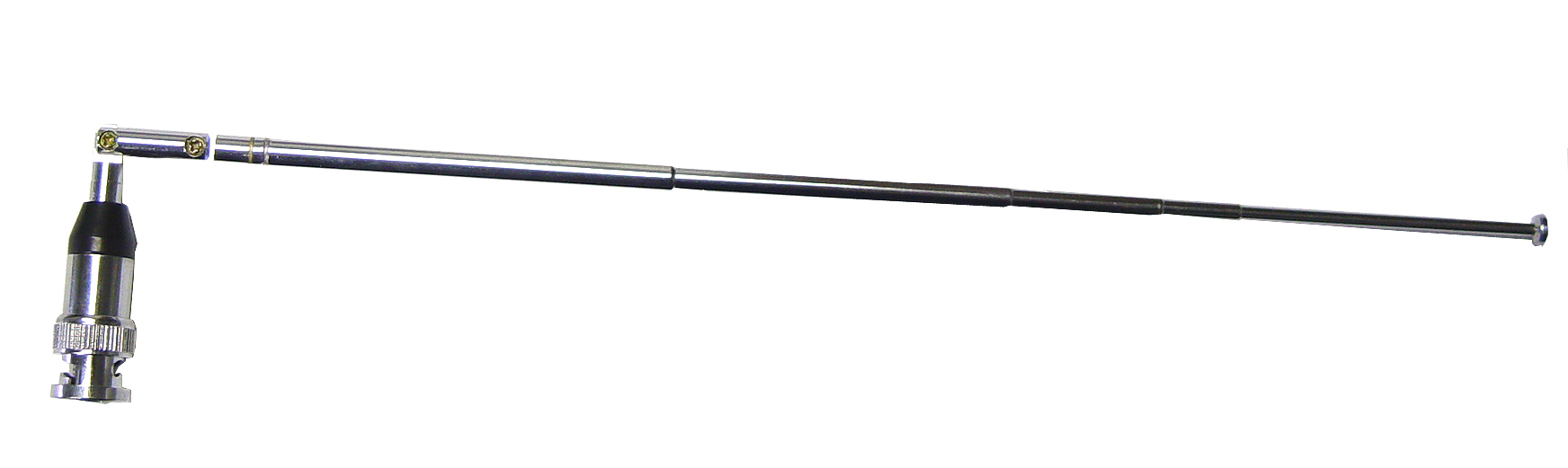

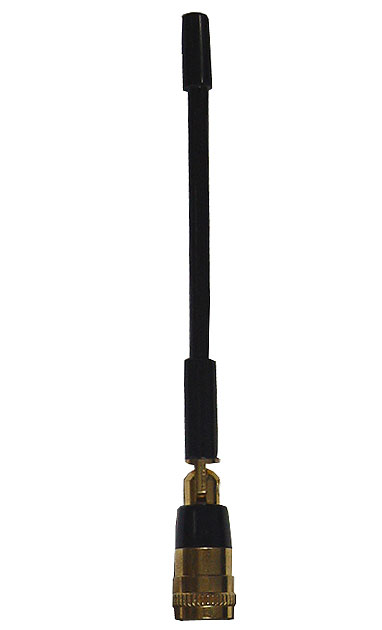

UNIVERSAL TV ANTENNA FOR RECEIVERS |
This antenna is a perfect match for our video receivers series. It covers frequency range from 470- 1000 MHz. This antenna has a male F-TV connector (standard TV-type connector)
Dimensions: 4.5" X 0.5 ".
SPECIFICATIONS:
| FREQUENCY: 470 MHz - 1000 MHz |
GAIN: 1.7 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 4.5 " X 0.5 " |
| MALE F-TV CONNECTOR |
|
|
| |
|
|
SPECIAL ANTENNA 2.0 dB GAIN 470 - 860 MHz |
This antenna is a perfect match for our video transmitters / receivers GX/M series. It will cover frequency range from 470 - 860 MHz (UHF TV band, channels 14 - 69). Connector type: BNC male.
Dimensions: 5.5 " X 0.5 ". Gain 2.0 dB
SPECIFICATIONS:
| FREQUENCY: 470 MHz - 860 MHz |
GAIN: 2 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 5.5 " X 0.5 " |
| BNC MALE CONNECTOR |
|
|
| |
|
|
WORLD'S SMALLEST 2,4 GHz VIDEO TRANSMITTER |
This new antenna design is a perfect match for our video transmitters / receivers GX/M series. It will cover frequency range from 470 - 860 MHz (UHF TV band, channels 14 - 69). Connector type: BNC male, Gain 2.4 dB
Dimensions: 6.5 " X 0.5 ".
SPECIFICATIONS:
| FREQUENCY: 470 MHz - 860 MHz |
GAIN: 2.4 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 6.5 " X 0.5 ". |
| BNC MALE CONNECTOR |
|
|
| |
|
|
WORLD'S SMALLEST 2,4 GHz VIDEO TRANSMITTER |
This antenna is the best and a perfect match for our video transmitters / receivers GX/M series. It will cover frequency range from 470 - 860 MHz (UHF TV band, channels 14 - 69). Connector type: BNC, Gain 2.8 dB. This antenna is highly recommended for HD transmitters UHF.
Dimensions: 8.2 " X 0.5 ".
SPECIFICATIONS:
| FREQUENCY: 470 MHz - 860 MHz |
GAIN: 2.8 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 8.2 " X 0.5 ". |
| BNC MALE CONNECTOR |
|
|
| |
|
|

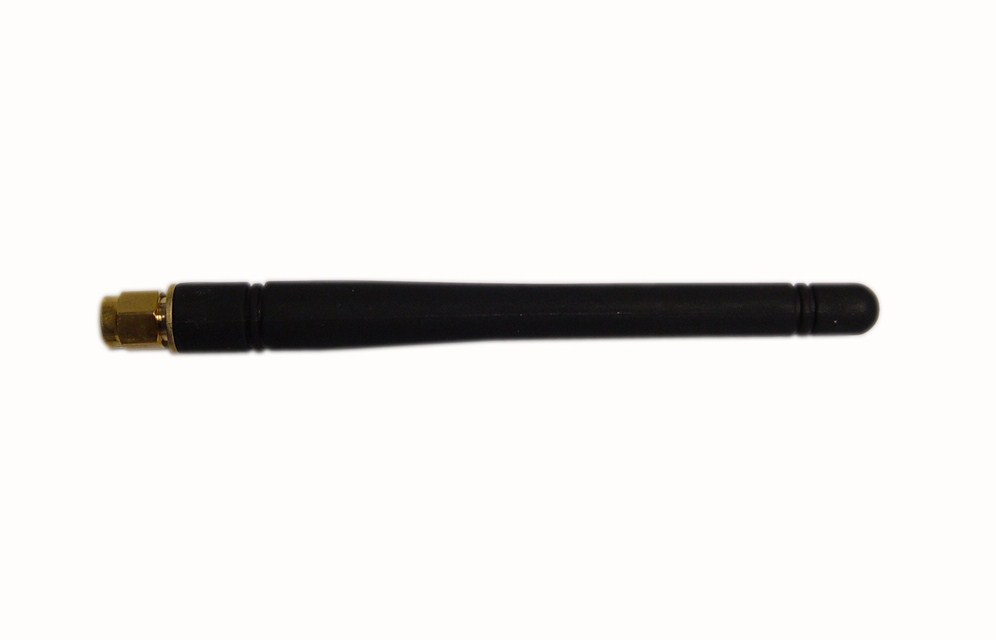

SPECIAL ANTENNA 1.8 dB GAIN 470 - 860 MHz |
This antenna is a perfect match for our video transmitters IGX series. It will cover frequency range from 470 - 860 MHz (UHF TV band, channels 14 - 69). Gain 1.8 dB. Connector type: SMA male.
Dimensions: 4.5 " X 0.35 ".
SPECIFICATIONS:
| FREQUENCY: 470 MHz - 860 MHz |
GAIN: 1.8 dBi |
| IMPEDANCE: 50 ohms |
SIZE:4.5 " X 0.35 ". |
| SMA MALE CONNECTOR |
|
|
| |
|
|
SPECIAL ANTENNA 1.8 DB GAIN 650 - 700 MHz |
This antenna is a perfect match for our video or audio transmitters in UHF range from 650-700 MHz. Gain is 1.8 dB. Connector type: SMA male. The antenna has a swivel.
Dimensions: 5.1 " X 0.35 ".
SPECIFICATIONS:
| FREQUENCY: 650 MHz - 700 MHz |
GAIN: 1.8 dBi |
| IMPEDANCE: 50 ohms |
SIZE:5.1 " X 0.35 ". |
| SMA MALE CONNECTOR |
|
|
| |
|
|
LONG DISTANCE UHF ANTENNA 4 dB GAIN 470-860 MHz |
This antenna is a long distance UHF option excellent for Video transmitters and receivers from 470-860 MHz for our video transmitters / receivers GX/SPX/M series. (UHF TV band, channels 14 - 69).
Dimensions: 12.2 " X 0.5 ".
SPECIFICATIONS:
| FREQUENCY: 470 MHz - 860 MHz |
GAIN: 4 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 12.2 " X 0.5 " |
| BNC MALE CONNECTOR |
|
|
| |
|
|

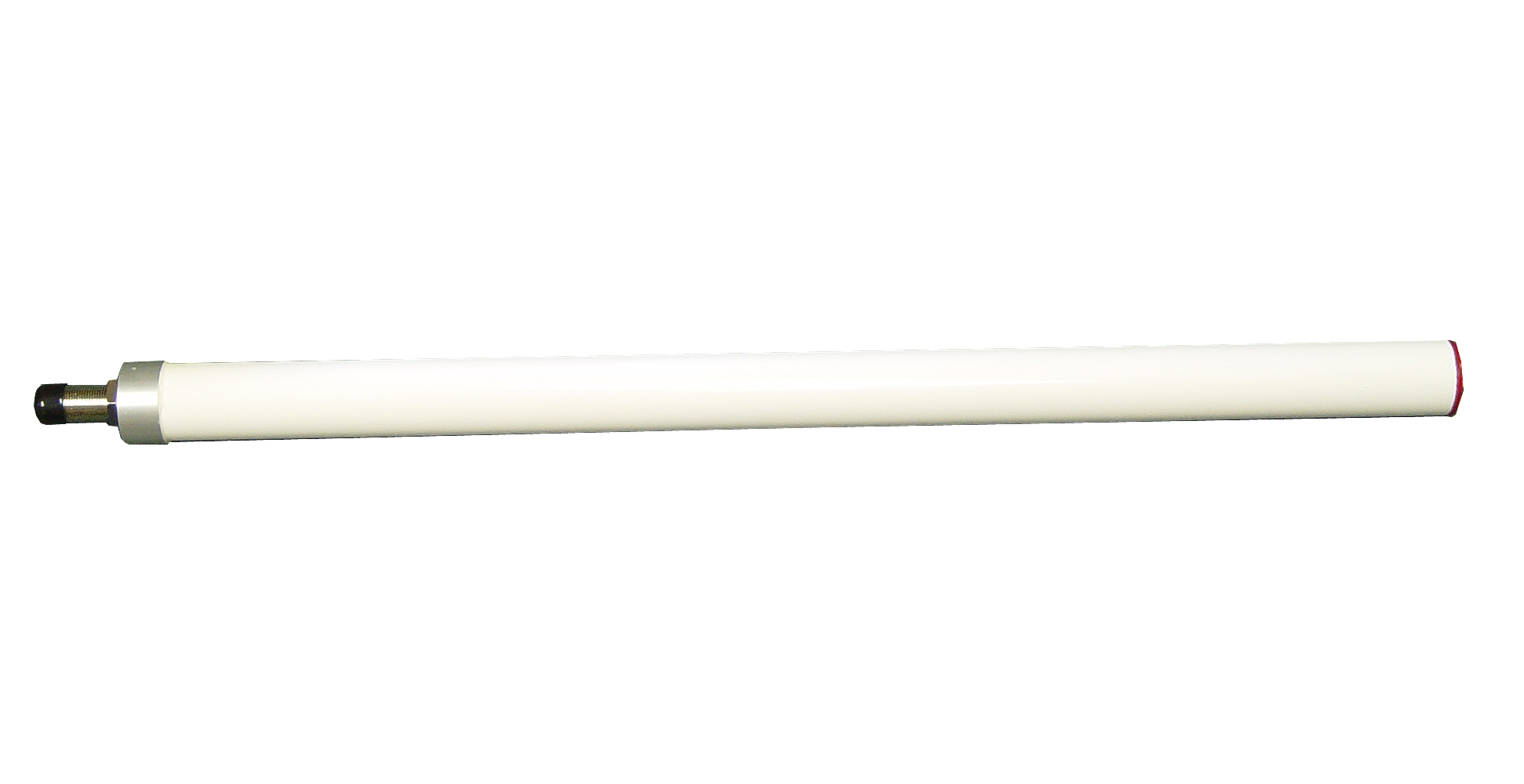

OMNI-DIRECTIONAL ANTENNA 3 dB GAIN |
This omni-directional antenna is a perfect match for TV transmitters in UHF band. This antenna covers frequency range from 470 MHz - 860 MHz.AD-4786 antenna has 3 dB gain over the band and 50 ohms impedance. It comes with an integral N-connector.
Dimensions: 20 " X 1.0 ".
SPECIFICATIONS:
| FREQUENCY: 470 MHz - 860 MHz |
GAIN: 3 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 20 " X 1.0 " |
| INTEGRAL N- CONNECTOR |
|
|
| |
|
|

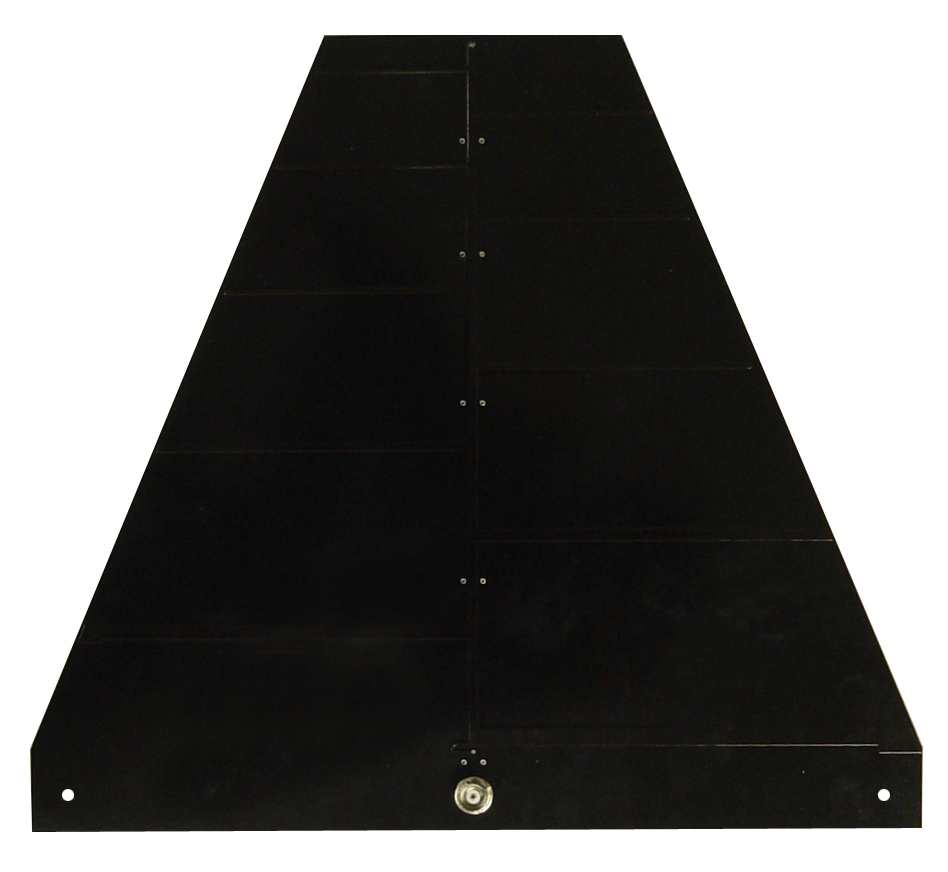

PROFESSIONAL UHF TV PANEL ANTENNA 9 dB GAIN |
Panel antenna LT-860 will give you an extended range and 9.0 dB gain in 470 MHz - 860 MHz band. This antenna can be used for both- transmitters and receivers. LT-860 is also recommended for wireless microphone receivers. Dimension of this antenna is 11" X 10 " X 0.1 ". Antenna LT-860 has an BNC connector. LT-860 with a N-connector is available upon request.
Dimensions: 11 " X 10 " X 0.1 ".
SPECIFICATIONS:
| FREQUENCY: 470 MHz - 860 MHz |
GAIN: 9 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 11 " X 10 " X 0.1 " |
| BNC CONNECTOR |
|
|
| |
|
|

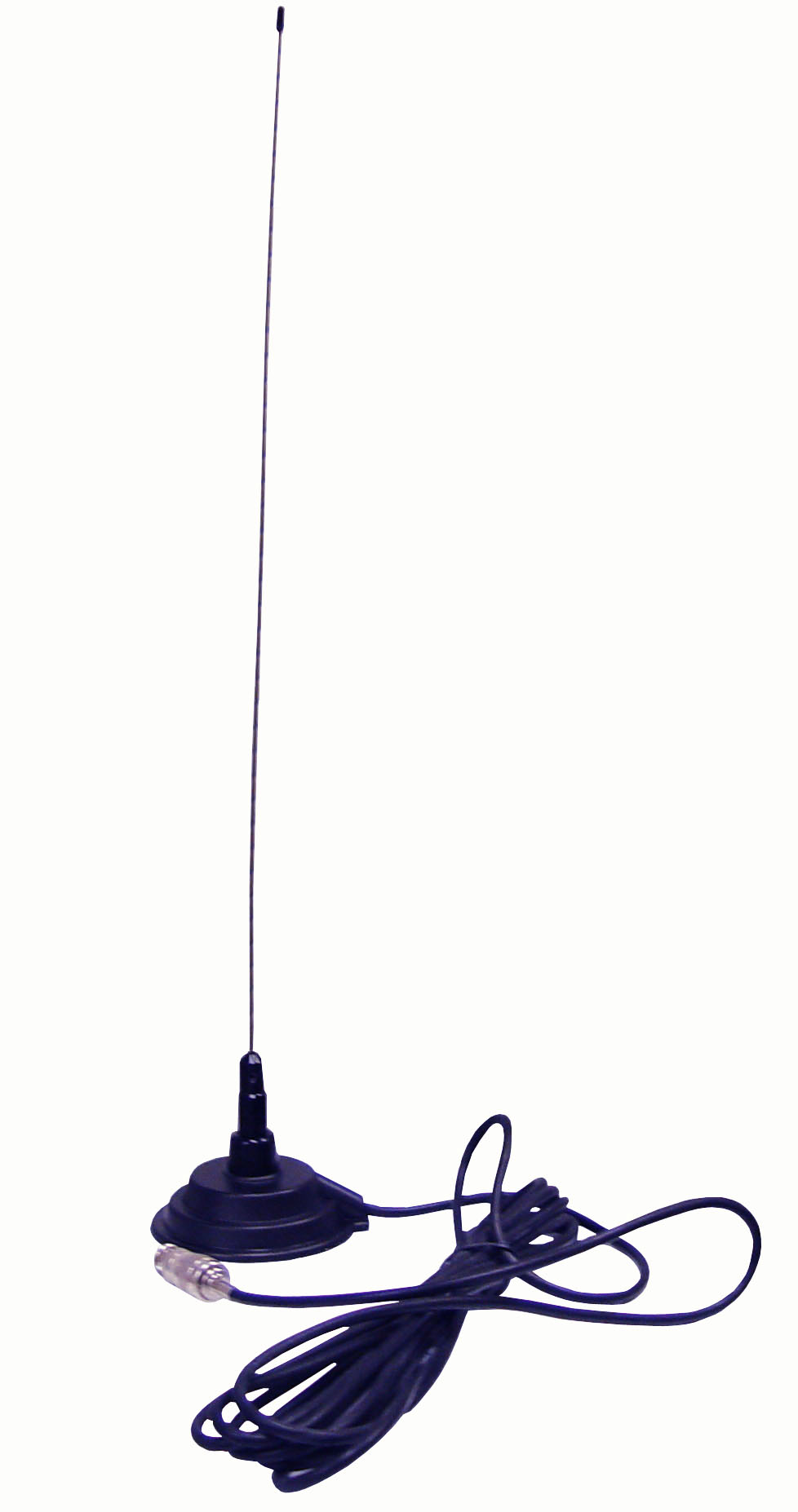

PROFESSIONAL UHF TV MOBILE ANTENNA 3.0 dB GAIN |
Omni directional magnet mount antenna MB-4070 will give you an extended range and 3.0 dB gain in 470 MHz - 700 MHz band. This antenna can be used for both- transmitters and receivers. MB-4070 is also recommended for wireless microphone receivers. Dimension of this antenna is 25" X 0.1 " ( Base 4.7" ). Antenna MB-4070 has an BNC connector.MB-4070 with a N-connector is available upon request.
SPECIFICATIONS:
| FREQUENCY: 470 MHz - 700 MHz |
GAIN: 3 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 25" X 0.1" |
| BNC CONNECTOR |
|
|
| |
|
|
PROFESSIONAL UHF TV PANEL ANTENNA 9 dB GAIN |
TV UHF range CH 53 - CH 65
N connector
Mounting bracket included SIZE: 9""X 11"
Max power 60 W
50 ohms impedance
Flat gain 9 dB
Excellent VSWR <1.4
Max wind load100 km/h
Vertical or horizontal polarization
SPECIFICATIONS:
| FREQUENCY: 720 MHz - 770 MHz |
GAIN: 9 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 9" X 11" |
| N CONNECTOR |
|
|
| |
|
|
850 MHz - 1000 MHz SPECIAL ANTENNA |
This special antenna antenna is excellent for any transmitter or receiver in 850-1000 MHz band. The antenna LOG8510 is using an N- type connector. Maxium transmitting power is 75W. Impedance 50 ohms, gain 9 dB in 850 MHz- 1000 MHz band.
Dimensions: 11 " X 8.3" X 2.6"
SPECIFICATIONS:
| FREQUENCY: 850 MHz - 1000 MHz |
GAIN: 9 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 11 " X 8.3" X 2.6" |
| N CONNECTOR |
|
|
| |
|
|

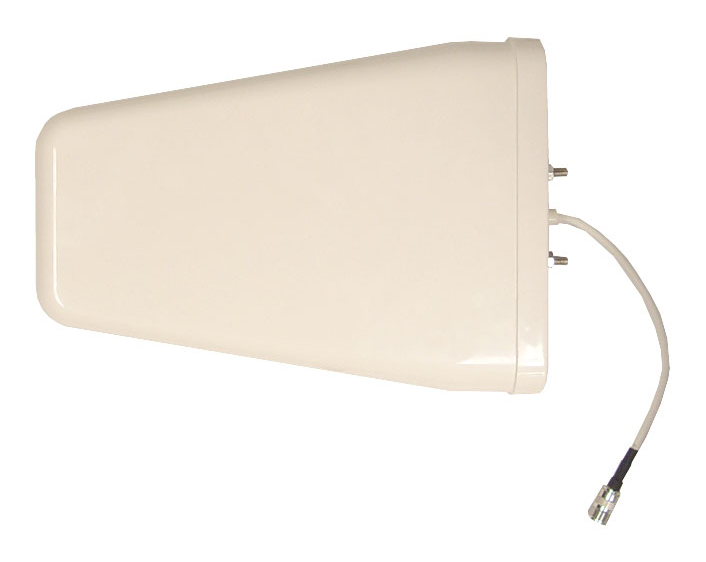

1200 MHz - 1450 MHz SPECIAL ANTENNA |
This special antenna antenna is excellent for any transmitter or receiver in 1200-1450 MHz band. The antenna LOG1214 is using an N-type connector. Maxium transmitting power is 75W. Impedance 50 ohms, gain 9 dB in 1200 MHz- 1450 MHz band.
Dimensions: 11 " X 8.3" X 2.6"
SPECIFICATIONS:
| FREQUENCY: 1200MHz - 1450 MHz |
GAIN: 9 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 11 " X 8.3" X 2.6" |
| N CONNECTOR |
|
|
| |
|
|
1250 MHz - 1600 MHz SPECIAL ANTENNA |
This special antenna a ntenna is excellent for any transmitter or receiver in 1250-1600 MHz band. The antenna LOG1216 is using an N- type connector. Maxium transmitting power is 75W. Impedance 50 ohms, gain 9 dB in 1250 MHz- 1600 MHz band.
Dimensions: 11 " X 8.3" X 2.6"
SPECIFICATIONS:
| FREQUENCY: 1250 MHz - 1600 MHz |
GAIN: 9 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 11 " X 8.3" X 2.6" |
| N CONNECTOR |
|
|
| |
|

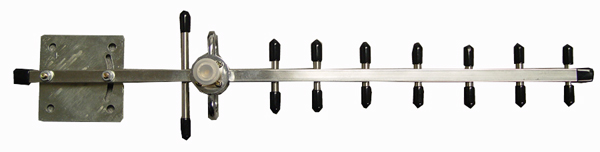

| Model:LOG-2223 |
| |
|
 |
|
SPECIAL ANTENNA FOR 2.2 - 2.3 GHz , 12 dB GAIN |
|
This is a perfect high antenna for special applications 2.2-2.3 GHz. Excellent for point to point commnuications and microwave TV links.
Dimensions: 16.5 " X 3.5 "
Weight: 0.4 lb
SPECIFICATIONS:
| FREQUENCY: 2.2 GHz - 2.3 GHz |
GAIN: 9 dBi |
| IMPEDANCE: 50 ohms |
SIZE:16.5 " X 3.5 " |
|
| |
|
|
SPECIAL ANTENNA 2.12 dB GAIN 790 MHz |
This antenna is a perfect match for our video transmitters / receivers SPX/M series. It will cover frequency range from 650- 800 MHz (UHF TV band, channels 45 - 69 UHF)
Dimensions:4.5 " X 0.5 "
Weight: 5 Grams.
SPECIFICATIONS:
| FREQUENCY: 650 MHz - 800 MHz |
GAIN: 2.12 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 4.5 " X 0.5 " |
| BNC CONNECTOR |
|
|
| |
|
|
EXCELLENT SMALL 900 MHz ANTENNA |
This little antenna is excellent for any transmitter or receiver in 900 MHz band. The antenna is using a BNC type connector. Antenna AN-900 S has an excellent VSWR in 896 MHz- 930 MHz range.
Dimensions: 3.0" X 0.6" X 0.3".
SPECIFICATIONS:
| FREQUENCY: 896 MHz - 930 MHz |
GAIN: 9 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 3.0" X 0.6" X 0.3". |
| BNC CONNECTOR |
|
|
| |
|
|
PROFESSIONAL UHF TV PANEL ANTENNA 9 dB GAIN |
Panel antenna PN-900 S will give you an excellent extended range and 8 dB gain in 900 MHz band. This antenna can be used for both- transmitters and receivers for 900 MHz. Antenna has an N-type connector and comes with a BNC adapter. This antenna has excellent performances in 900 MHz- 928 MHz range.
Dimensions are:10.0" X 8.0" X 0.6".
SPECIFICATIONS:
| FREQUENCY: 900 MHz -928 MHz |
GAIN: 8 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 10.0" X 8.0" X 0.6" |
| N CONNECTOR |
|
|
| |
|
|
EXCELLENT SMALL 1.7 GHz - 1.8 GHz ANTENNA |
This little antenna is excellent for any transmitter or receiver in 1.7 GHz band. The antenna is using an SMA type connector. Dimensions are: 7.5" X 1.2" X 0.2". Impedance 50 ohms, gain 5.1 dBi. SWR < 2 in 1.73 GHz- 1.81 GHz
Dimensions: 8.5" X 0.2 ".
SPECIFICATIONS:
| FREQUENCY: 1.73 GHz - 1.81 GHz |
GAIN: 5.1 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 8.5" X 0.2 " |
| SMA CONNECTOR |
|
|
| |
|
|
EXCELLENT SMALL 1.7 GHz - 1.8 GHz ANTENNA |
|
This very compact mobile-mount omni antenna provides broad coverage and 5 dBi gain. It is ideally suited for PCS applications where omni-directional coverage and low visibility are desired.
Dimensions: 12.8 " including base.
SPECIFICATIONS:
| FREQUENCY: 1.7 GHz - 1.8 GHz |
GAIN: 5 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 12.8" including base |
|
| |
|
|
EXCELLENT 1.7 GHz - 1.9 GHz ANTENNA |
AD-17L antenna is highly recommended for Police robots transmitters. It is omni directional and works for any transmitter or receiver in 1.7 GHz band. The antenna is using an SMA type connector.
Dimensions: 8.5 " X 1.5 "
SPECIFICATIONS:
| FREQUENCY: 1.7 GHz - 1.9 GHz |
GAIN: 5 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 8.5 " X 1.5 " |
| SMA CONNECTOR |
|
|
| |
|
|
EXCELLENT 1.7 GHz - 1.9 GHz ANTENNA |
|
AD-17S antenna is highly recommended for Police robots transmitters. It is omni directional and works for any transmitter or receiver in 1.7 GHz band. The antenna is using an SMA type connector.
Dimensions: 10.5 " X 1.5 "
SPECIFICATIONS:
| FREQUENCY: 1.7 GHz - 1.9 GHz |
GAIN: 8 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 10.5 " X 1.5 " |
| N CONNECTOR |
|
|
| |
|
|
PROFESSIONAL UHF TV PANEL ANTENNA 9 dB GAIN |
|
This omni-directional antenna is a perfect match for 900 UHF transmitters or receivers. It covers the frequency range from 902 MHz - 940 MHz.This antennas has 6 dB gain and 50 ohms impedance.
Dimensions: 20 " X 1.0 ".
SPECIFICATIONS:
| FREQUENCY: 902 MHz - 940 MHz |
GAIN: 6 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 20 " X 1.0 " |
| INTEGRAL N-FEMALE CONNECTOR |
|
|
| |
|
|

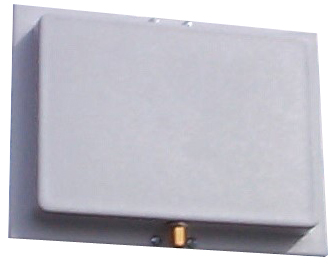

PROFESSIONAL UHF TV PANEL ANTENNA 9 dB GAIN |
Panel antenna PT-1700 will give you an excellent extended range and 9.5 dB gain in 1.7 GHz- 1.9 GHz band. This antenna can be used for both- transmitters and receivers for 1700 MHz. Dimension of this antenna is 6" X 5 " X 0.6". Antenna PT-1700 has an SMA connector. This antenna has excellent performances in 1700 MHz- 1900 MHz range.
SPECIFICATIONS:
| FREQUENCY: 1700 MHz - 1990 MHz |
GAIN: 9.5 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 6.5 " X 5.0 " X 0.6 " |
| SMA CONNECTOR |
|
|
| |
|
|

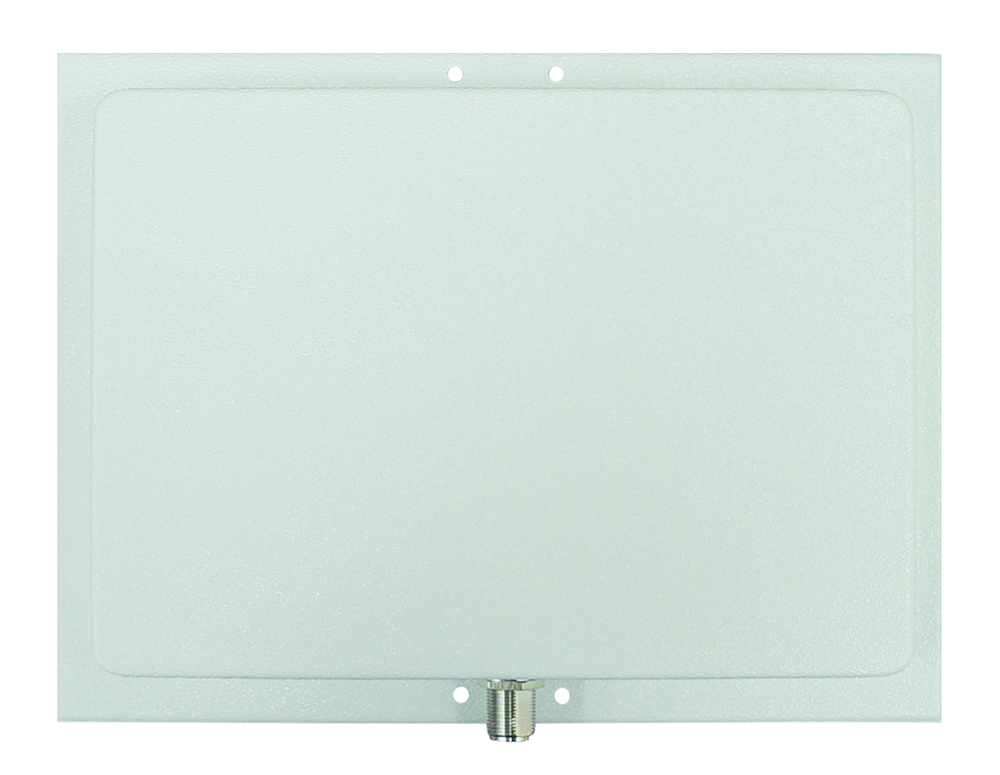

HIGH GAIN 1.71 GHz - 1.88 GHz PANEL ANTENNA 15.5 DB GAIN |
Panel antenna PT-1700LH will give you an excellent extended range and 15.5 dB gain in 1.71 GHz - 1.88 GHz band. This antenna can be used for both- transmitters and receivers for 1700 MHz. Dimension of this antenna is 11.5" X 8.6 " X 1.2". Antenna PT-1700LH has an N-type connector. This antenna has excellent performances in 1700 MHz-1800 MHz range. Please check pdf file.
SPECIFICATIONS:
| FREQUENCY: 1710 MHz - 1880 MHz |
GAIN: 15.5.5 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 11.5" X 8.6 " X 1.2" |
| N CONNECTOR |
|
|
| |
|
|
1.7 GHz - 1.8 GHz ANTENNA |
|
This special antenna is excellent for any transmitter or receiver in 1.7-1.8 GHz band. The antenna LOG2/GR is using an N- type connector. Length of this antenna is 40", diameter is 4". Impedance 50 ohms, gain 18 dB. SWR < 1.12 in 1.75 GHz- 1.85 GHz band.
Dimensions: 40.0 " X 4.0 "
SPECIFICATIONS:
| FREQUENCY: 1750 MHz - 1850 MHz |
GAIN: 18 dBi |
| IMPEDANCE: 50 ohms |
SIZE:40.0 " X 4.0 " |
| N CONNECTOR |
|
|
| |
|
|
1.7 GHz - 2.1 GHz SPECIAL ANTENNA |
This special antenna antenna is excellent for any transmitter or receiver in 1.7-2.1 GHz band. The antenna LOG4/GR is using an N- type connector. Maxium transmitting power is 75W. Impedance 50 ohms, gain 9 dB in 1.7 GHz- 2.1 GHz band.
Dimensions: 11 " X 8.3" X 2.6"
SPECIFICATIONS:
| FREQUENCY: 1750 MHz -2150 MHz |
GAIN: 9 dBi |
| IMPEDANCE: 50 ohms |
SIZE:11 " X 8.3" X 2.6" |
| N CONNECTOR |
|
|
| |
|
|
72 MHz ANTENNA 72 MHz FOR SPECIAL APPLICATIONS |
|
This special antenna is excellent for remote controlled transmitters in72 MHz band. Impedance 50 ohms, gain 3.8 dB, Bandwidth is 2 MHz.
Dimensions: 55.5" x 0.75"
SPECIFICATIONS:
| FREQUENCY: 72 MHz |
GAIN:3.8 dBi |
| IMPEDANCE: 50 ohms |
SIZE: 55.5" x 0.75" |
|
| |
|
|
|
