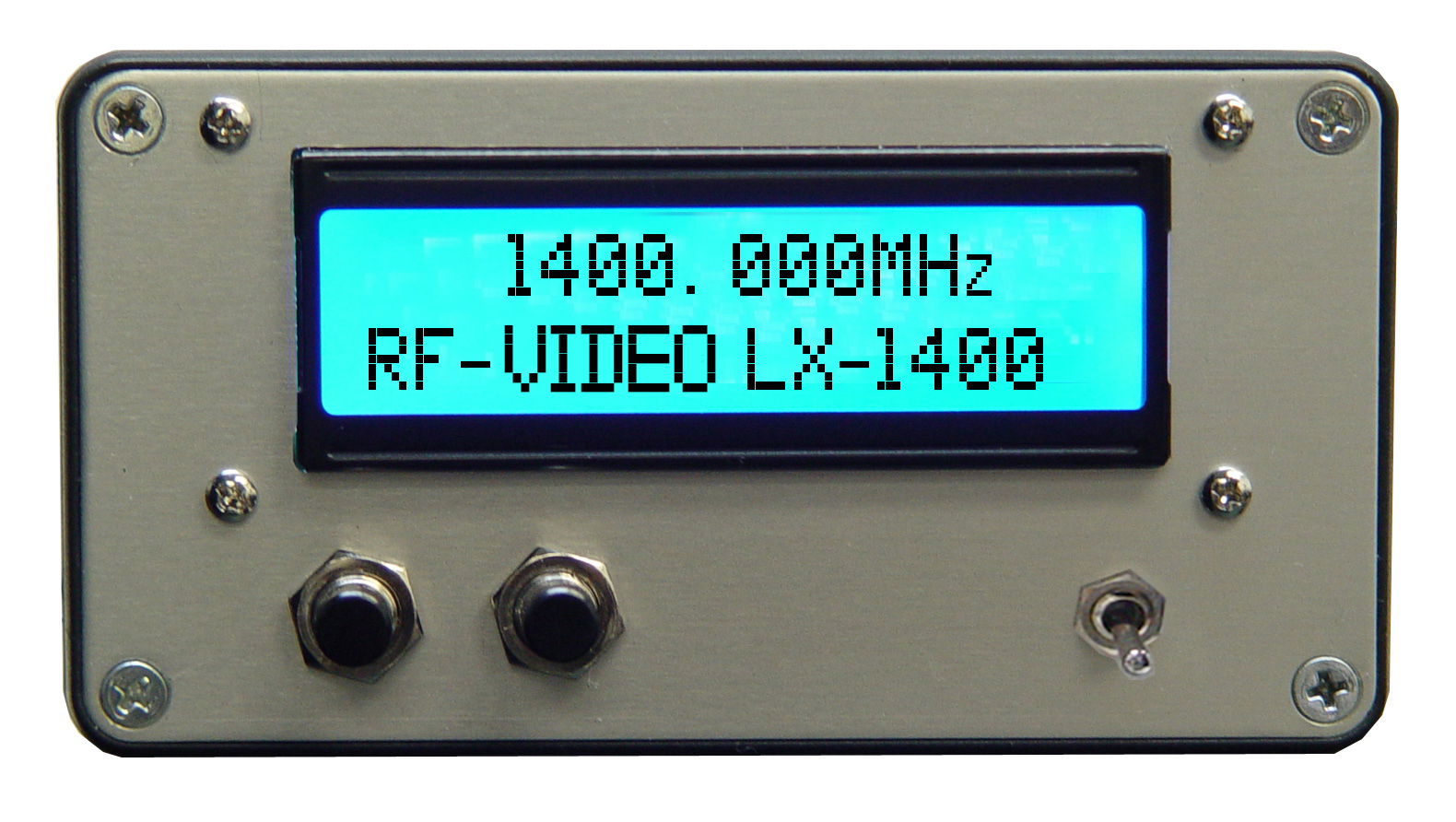

SERVICES & SUPPORT Our Lab and Engineering staff will give you an excellent service.Custom designs are available upon request. Please send your inquiries to: info@rf-video.com Model:LX-1400 Data sheet PDF NEW VIDEO TRANSMITTER FOR 1400 MHz WITH DIGITAL DISPLAY The new 1.4 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has digital display with easy to change channels and 1.5 W RF power. LX-1400 works from 9 V- 16 V.  Dimensions: 6.0 " X 4.0 " X 2.0" SPECIFICATIONS: BATTERY POWER: 12 V-14 V RF POWER: 1.5 W OPERATING FREQUENCY: 1325-1475 MHz SIZE: 6.0 " X 4.0 " X 2.0" NTSC, PAL SYSTEMS SMA ANTENNA CONNECTOR IMPEDANCE: 50 ohms RANGE: OVER 6 MILES CURRENT CONSUMPTION: 800 mA / 12 V SIZE: 6.0" X 4.0" X 2.0"   Model:LX-1400H Data sheet PDF NEW VIDEO TRANSMITTER FOR 1400 MHz WITH DIGITAL DISPLAY The new 1.4 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter digital display with easy to change channels and 5 W RF power. LX-1400 works from 9 V- 16 V. Dimensions: 6.0 " X 4.0 " X 2.0". SPECIFICATIONS: BATTERY POWER: 12 V-14 V RF POWER: 5 W OPERATING FREQUENCY: 1400 MHz SIZE: 6.0 " X 4.0 " X 2.0" NTSC, PAL SYSTEMS SMA ANTENNA CONNECTOR IMPEDANCE: 50 ohms RANGE: OVER 6 KM LOS CURRENT CONSUMPTION: 1,500 mA / 12 V SIZE: 6.0" X 4.0" X 2.0"
